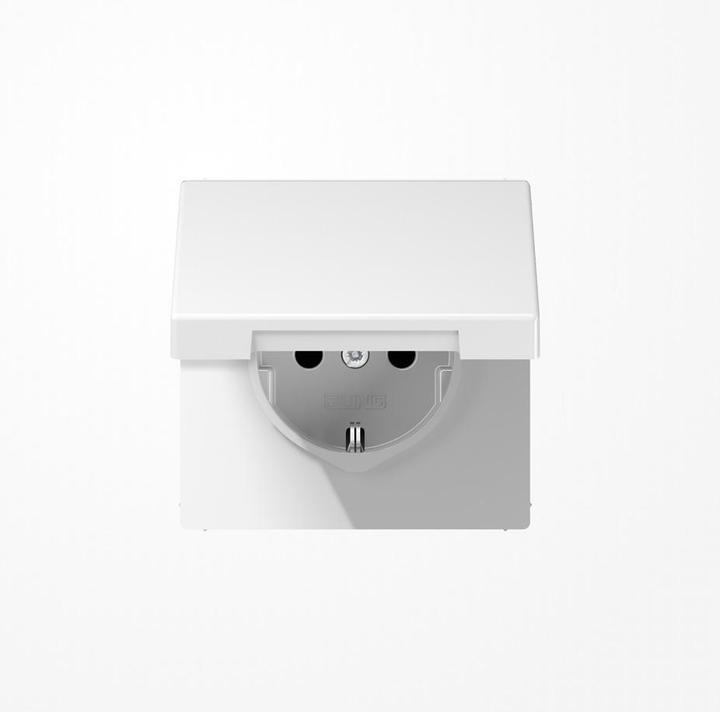

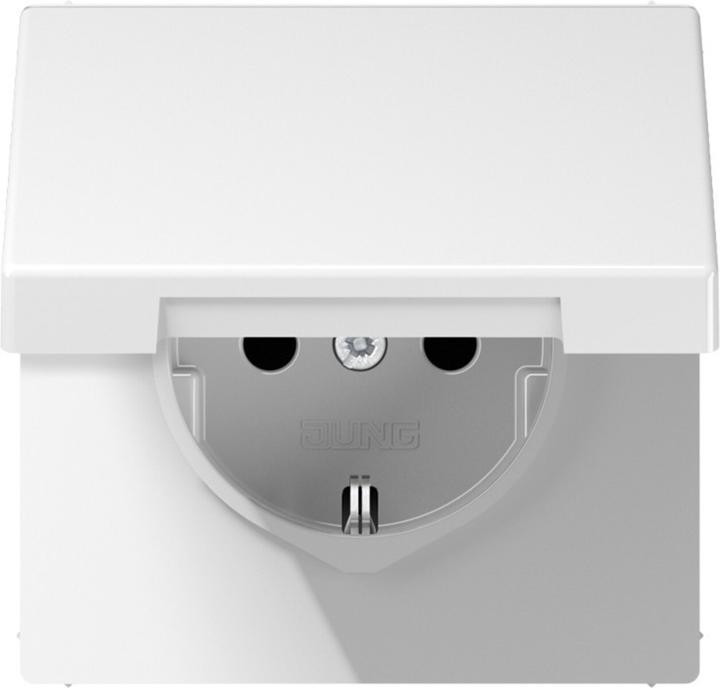

JUNG SCHUKO socket outlet

Jung SCHUKO socket outlet 16 A 250V LS 1520 BFKL WW Manufacturer: Jung Designation: SCHUKO socket outlet 16 A 250V w.Hinged cover bruchs Type: LS 1520 BFKL WW Design: SCHUKO Protective contact: yes Protective conductor contact round: yes Number of active contacts (round): 2 With signal lamp: no With built-in USB power supply: no Number of units: 1 Number of phases: 1 Imprint/labeling: without Connection type: plug-in terminal With hinged cover: yes With increased contact protection: no Text field/inscription area: no Color: white RAL number (similar): 9016 Transparent: no Lockable: no Eject mechanism: no With function lighting: no With orientation light: no Overvoltage protection: no Residual current protection: no With fine-wire fuse: no Special power supply: without special power supply Mounting type: flush-mounted Mounting type: Claw/screw mounting Material: plastic Material grade: thermoplastic Halogen-free: yes Surface protection: other Surface finish: glossy Antibacterial treatment: no With on/off switch: no With loop-through function: no Twisted central insert: no Rated current: 16 A Rated voltage: 250 V Suitable for protection class (IP): IP44 Device width: 70 mm Device height: 70 mm Cover: central plateJung SCHUKO socket outlet 16 A 250V LS 1520 BFKL WW: further detailsSCHUKO® socket outlet, alpine white with hinged cover (with return spring) with spring terminals for rigid and untreated flexible conductors up to 2.5 mm2 Connection terminals according to DIN VDE 0620 Support ring, claws and claw screws are integrated into the protective measure via an earthing rail. Material: thermoplastic Dimensions (W x H): 70 x 70 mm , EAN: 4011377131323.
