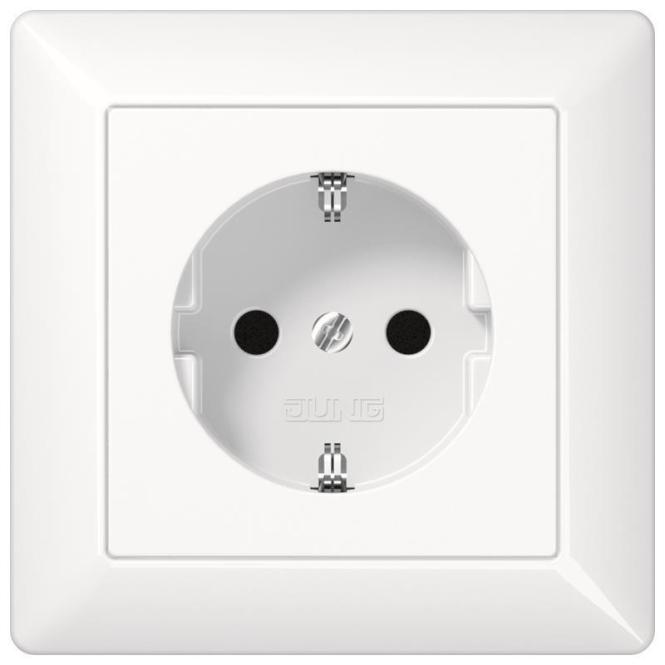

JUNG SCHUKO socket outlet

Jung Schuko socket outlet AS 1520 KI WW

Manufacturer: Jung
Designation: Schuko socket outlet
Color: Alpine white
Type: AS 1520 KI WW
Design: Schuko
Protective contact: Yes
Protective earth contact: Yes
Number of active contacts: 2
With signal lamp: No
With built-in USB power supply: No
Number of units: 1
Number of phases: 1
Imprint/labeling: Without
Connection type: Plug-in terminal
With hinged cover: No
With increased touch protection: Yes
Text field/inscription area: No
RAL number (similar): 9016
Transparent: No
Lockable: No
Eject mechanism: No
Insulated installation: No
With function lighting: No
With orientation light: No
Overvoltage protection: No
Residual current protection: No
With microfuse: No
Special power supply: Without special power supply
Mounting type: Flush mounting
Mounting type: Claw/screw mounting
Material: Plastic
Material grade: Thermoset
Halogen-free: Yes
Surface protection: Other
Surface finish: Glossy
Antibacterial treatment: No
With on/off switch: No
With loop-through function: No
Rotated central insert: No
Rated current: 16 A
Rated voltage: 250 V
Suitable for protection class (IP): IP20
Device width: 80.5 mm
Device height: 80.5 mm
Cover: Solid plate

Further details:
With integrated increased contact protection, molded frame, and spring terminals for rigid and untreated flexible conductors up to 2.5 mm². Connection terminals according to DIN VDE 0620. Support ring, claws, and claw screws are integrated into the protective measure via an earthing rail. Material: Thermoset.
