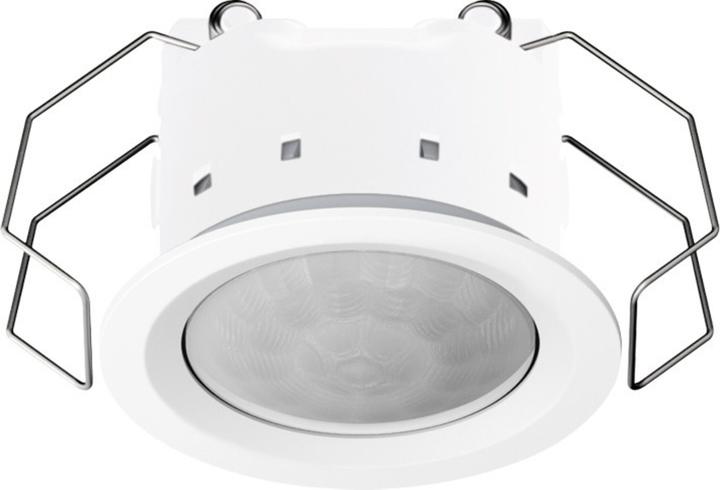

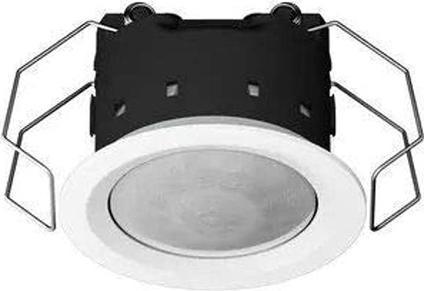

JUNG KNX presence detector Mini Universal alpine white 3361-1 M WW

KNX Presence Detector Ceiling Guardian Universal with integrated bus coupler ETS product family Physical Sensors Product Type Motion Detector Product Features Integrated bus coupling, 3 PIR sensors, detection field 360° x 120°, integrated brightness sensor. Can be used as a presence detector, motion detector, or for reporting operation. Output functions: Switching, stairwell function, forced position switching, value transmitter, light scene secondary station, operating mode preset for room temperature controllers. Detection range can be extended by connecting multiple devices in parallel as main and secondary stations. Adjuster for manual sensitivity correction. Status LED: Blinks when motion is detected depending on programming in normal operation or only during the walk test operation.

Presence detection function: Detects the smallest movements, e.g., at a workstation to recognize the presence of individuals. Activation: Presence of individuals and brightness threshold not met. Deactivation: No individuals in the detection field and expiration of the time delay or brightness threshold exceeded.

Motion detection function: Detects movements for traffic route security in buildings. Activation: Presence of individuals and brightness threshold not met. Deactivation: No individuals in the detection field and expiration of the time delay.
