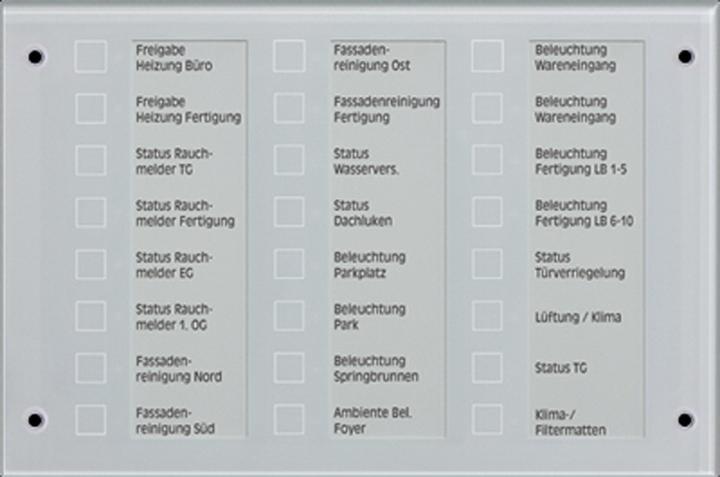

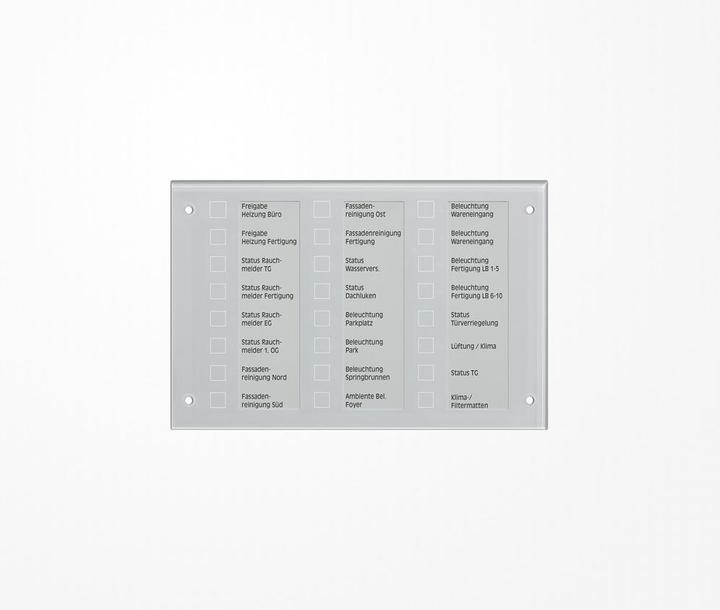

JUNG Indicator/control panel flush-mounted KNX gn b/w touch MBT2424

ETS Product Family Display
Product Type Reporting and Control Panel

The panel features an aluminum housing and a high-quality glass front, equipped with 24 independent capacitive sensor buttons and 24 RGB LEDs for status indication, which can be labeled using film strips. In addition to switching/button, dimming, blind control, and scene functions, value transmitter functions are also possible. The separately parameterizable LEDs can illuminate in red, green, or blue, thereby signaling different states of the KNX system based on threshold values. A locking function allows specific buttons, columns, or the entire panel to be locked. Acoustic signals for button presses and alerts are parameterizable. The MBT 2424 is mounted in a 2-gang flush-mounted device box or in a surface-mounted housing and is fully projectable in the ETS. A drilling template is available for installation. The labeling of assigned functions is done using interchangeable labeling strips. Printing is facilitated by the JUNG labeling tool. The front glass panel is secured with four M3 screws with two holes. The necessary bit for installation is included in the delivery.

Product Features
Touch sensor functions: Switching, dimming, blind control, value transmission, scene recall, etc.
High-quality glass surface with 24 sensor areas
Operation by touching the sensor areas
Labeling with insert strips
Status indication with 24 LEDs; color red, green, or blue parameterizable
Acoustic signal display, e.g., for button presses
Fault notification upon disassembly
Logic and timing functions
Integrated bus coupler
Power supply via separate power supply or the auxiliary voltage output of the KNX power supply.
