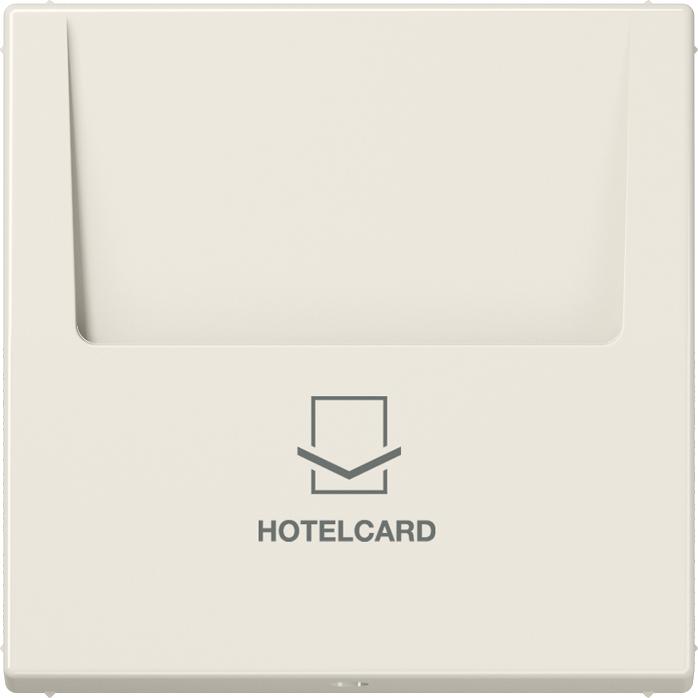

JUNG Hotelcard switch LS ws glz LS590CARD

Jung Hotel Card Switch WS LS 590 CARD

Manufacturer: Jung
Description: Hotel card switch WS without push-button insert
Type: LS 590 CARD
Version: Hotel card
Printing/Labeling: other
Scannable symbol/barrier-free: no
Usage: Switch/Push-button
Suitable for bus system push-button coupling: no
Mounting type: Clamp mounting
Control window/Light outlet: no
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Surface protection: other
Surface finish: glossy
Antibacterial treatment: no
Color: white
RAL number (similar): 1013
With labeling field: no
With interchangeable lens/symbol: no
Suitable for protection class (IP): IP2X
Width: 70 mm
Height: 70 mm

The hotel card switch is designed to store the hotel card and ensure a high level of security and energy savings, as all electrical consumers that may still be switched on are automatically turned off when the hotel card is removed. The hotel card switch is completed with a push-button from the JUNG program. The recommended push-button is item no. 533 U with a normally open/normally closed contact and an additional neutral terminal. The device operates as either a normally open or normally closed contact depending on the connection. The separate neutral terminal allows for the operation of a pilot, incandescent, or LED lamp at the same potential. If the pilot lamp should not be at the same potential, the normally closed push-button item no. 534 U with a separate signaling contact can also be used. Installation note: No plaster compensation possible. Installation must be flush with the wall. The mounting ring must not be covered with wallpaper.
EAN: 4011377490604.
