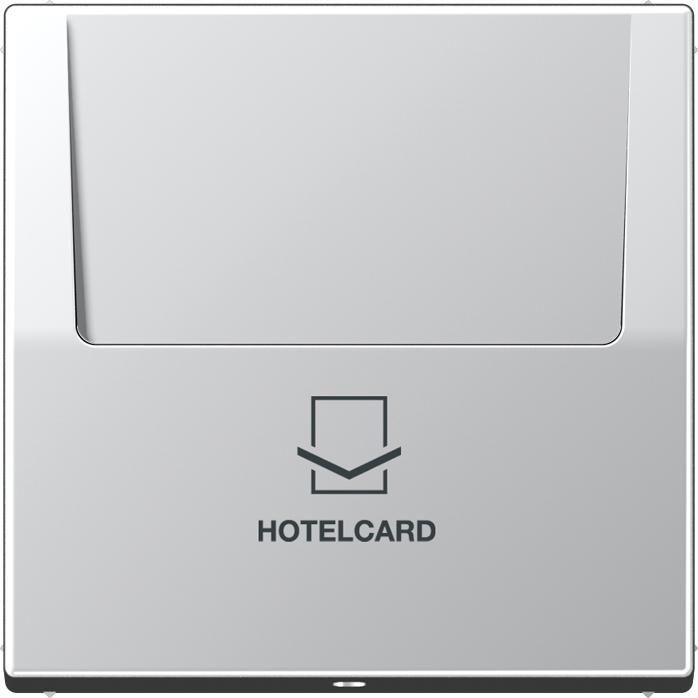

JUNG Hotelcard switch LS alu mt AL2990CARD

Jung Hotel Card Switch alu AL 2990 CARD

Manufacturer: Jung
Description: Hotel card switch alu without button insert
Type: AL 2990 CARD
Execution: Hotel card
Print/Labeling: other
Scannable symbol/barrier-free: no
Usage: Switch/Button
Suitable for bus system button coupling: no
Mounting type: Clamp mounting
Control window/Light outlet: no
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Surface protection: painted
Surface finish: matte
Antibacterial treatment: no
Color: Aluminum
With labeling field: no
With interchangeable lens/symbol: no
Suitable for protection class (IP): IP20
Width: 70 mm
Height: 70 mm

The hotel card switch is designed to store the hotel card and ensure a high level of safety and energy savings, as all electrical devices that may still be switched on are automatically turned off when the hotel card is removed. The hotel card switch is completed with a button from the JUNG program. The recommended button is Art. No. 533 U with a normally open/closed contact and an additional neutral terminal. The device operates as either a normally open or normally closed contact depending on the connection. The separate neutral terminal allows for the operation of a glow, incandescent, or LED lamp at the same potential. If the pilot lamp should not be at the same potential, the normally closed button Art. No. 534 U with a separate signaling contact can also be used.

Installation note: No plaster compensation possible. Installation must be flush with the wall. The mounting ring must not be wallpapered over.
EAN: 4011377204157.
