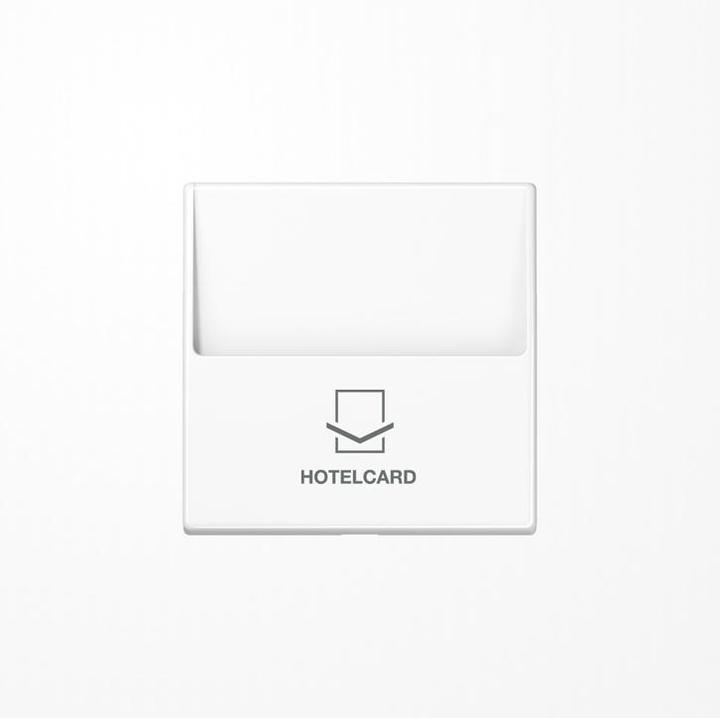

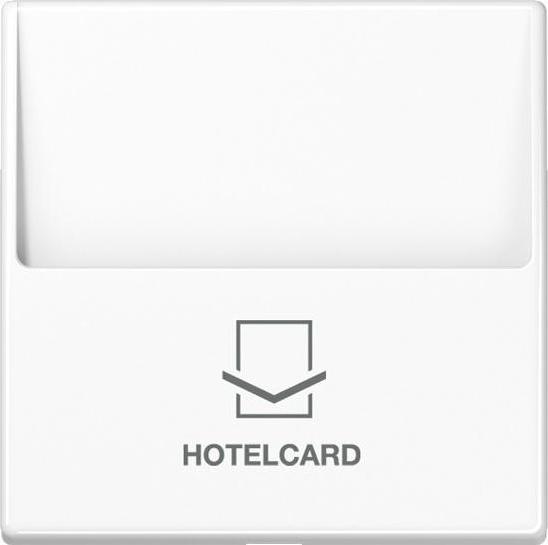

JUNG Hotelcard switch AS/A aws glz A590CARDWW

Jung Hotel Card Switch aws A 590 CARD WW

Manufacturer: Jung
Description: Hotel card switch aws without button insert
Type: A 590 CARD WW
Design: Hotel card
Printing/Labeling: other
Scannable symbol/accessibility: no
Usage: Switch/Button
Suitable for bus system button coupling: no
Mounting type: Clamp mounting
Control window/Light outlet: no
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Surface protection: other
Surface finish: glossy
Antibacterial treatment: no
Color: alpine white
RAL number (similar): 9016
With labeling field: no
With interchangeable lens/symbol: no
Suitable for protection class (IP): IP2X
Width: 55 mm
Height: 55 mm

The hotel card switch is designed to store the hotel card and ensure a high level of security and energy savings, as all electrical consumers that may still be switched on are automatically turned off when the hotel card is removed. The hotel card switch is completed with a button from the JUNG program. The recommended button is item no. 533 U with a normally open/normally closed contact and an additional neutral terminal. The device operates as either a normally open or normally closed contact depending on the connection. The separate neutral terminal allows for the operation of a pilot light, incandescent, or LED lamp at the same potential. If the pilot light should not be at the same potential, the normally closed button item no. 534 U with a separate signaling contact can also be used.

Installation note: No plaster compensation possible. Installation must be flush with the wall. The mounting ring must not be covered with wallpaper.
