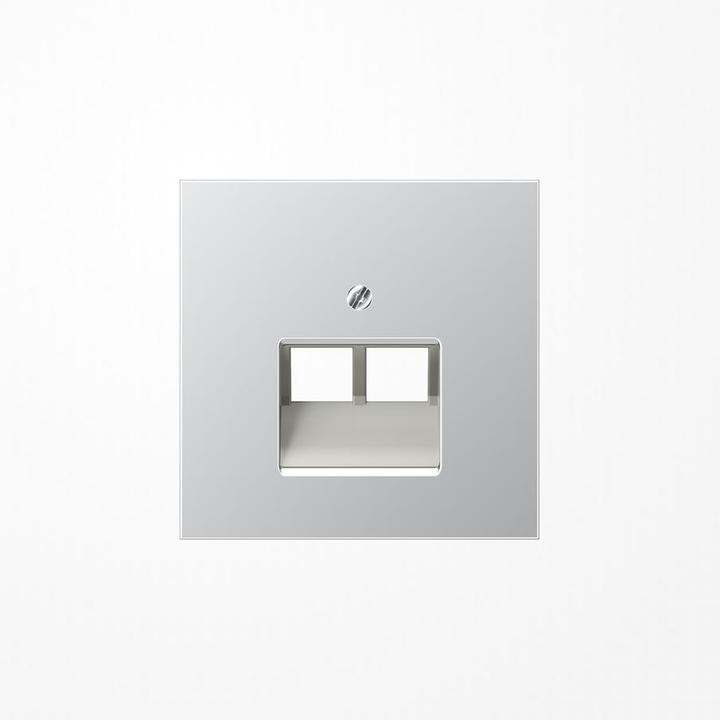

JUNG Cover

Jung cover alu AL 2969-2 UA
Manufacturer: Jung
Designation: Cover alu for IAE/UAE box
Type: AL 2969-2 UA
Assembly: Other
Usage: UAE/IAE
Support ring: No
With dust protection: No
With hinged cover: No
Outlet direction: Straight
Labeling field: Without labeling field
With imprint: No
Mounting type: Surface mount
Material: Metal
Material grade: Aluminum
Halogen-free: Yes
Surface protection: Other
Finish: Matt
Color: Aluminum
Transparent: No
Mounting type: Mounting with screw
With sockets/couplings: No
Suitable for number of sockets/couplings: 2
With strain relief: No
Housing shielded: No
Luster terminal: No
Suitable for protection class (IP): IP20
Device width: 70 mm
Device height: 70 mm

Jung cover alu AL 2969-2 UA: More details
Material: Aluminum AlMg1 natural tone, matt pickled for IAE/UAE junction boxes
Art. no.-No.: UAE 2 x 8 UPO, UAE 8-8 UPO for data socket Cat. 6
Art.-No.: UAE 8-8 UPOK6E, UAE 8-8 UPOK6 (2 x 8-pin) for media converter 2-fold
Art.-No.: MK-POF-2UAE
Cover also fits to junction boxes Fa. METZ CONNECT; E-Dat design 8/8(8), Class E
Fa. Rutenbeck: UAE 8/8 (8/8) UPO, UAE 2x8 (8) UPO, UAE-Cat.5e-8/8 UPO OK, UAE-real.Cat.6-8/8 UPO OK
Fa. Telegärtner: AMJ 45, UMJ 45 and ISDN 2 x RJ 45 (TYP 8/8).
