JUNG Brightness sensor KNX AP 0-60000lx 1channel WS10H

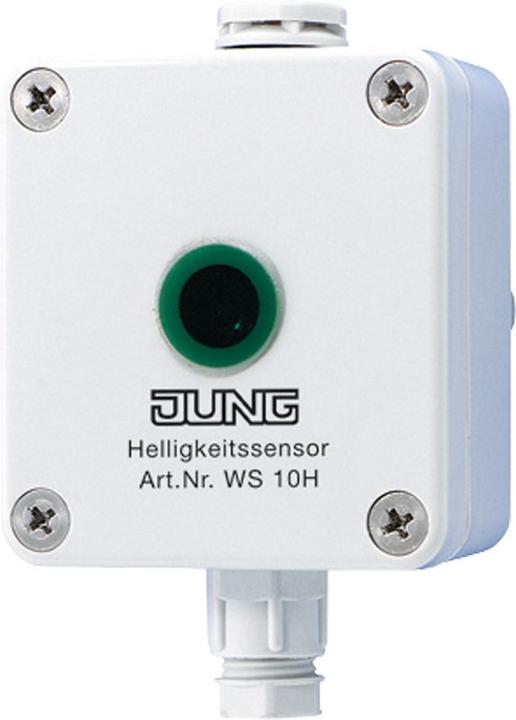

Jung Brightness Sensor WS 10 H
Manufacturer: Jung
Designation: Brightness Sensor 24V DC
Type: WS 10 H
Bus System KNX: yes
Bus System KNX-RF: no
Bus System Radio Bus: no
Bus System LON: no
Bus System Powernet: no
Mounting Type: Surface-mounted
With LED Display: no
Sensor Design: Built-in Light Sensor
Number of Channels: 1
Setting: 0..60000 lx
Protection Class (IP): IP65

Jung Brightness Sensor WS 10 H: additional details
Operating Voltage: 24 V DC
Measuring Range: 0 to 60,000 Lux, linear
Function: The three measuring sensors for brightness, twilight, and temperature collect climatic data depending on the sensor type and convert it into analog voltage signals (0 ... 10 V). To evaluate these signals, an analog input is required, which can send measurement or command telegrams to the KNX based on the analog signals. The sensors are equipped with pressure compensation elements (climate membrane) to prevent moisture formation inside the housing.
Connection: The supply line is routed through the PG7 fitting to the terminal blocks.
+UB: Operating Voltage 24 V DC
GND: Reference Potential (Ground) isolated
OUT: Output 0 ... 10 V
EAN: 4011377069558.
