JUNG Brightness sensor KNX AP 0-255lx 1channel WS10D

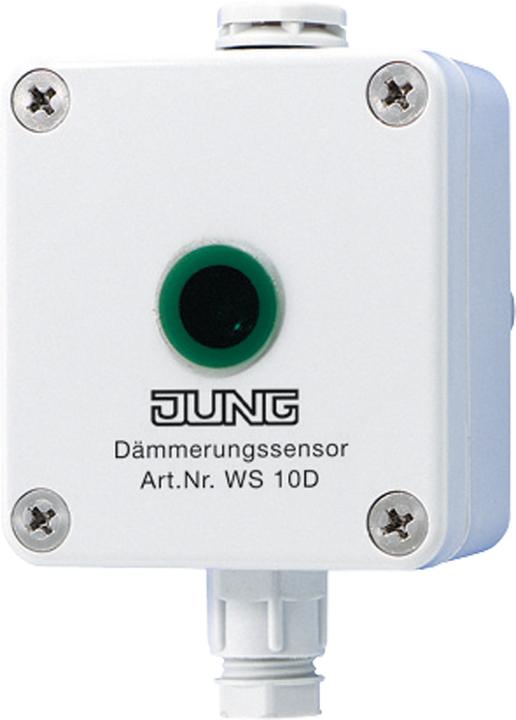

Jung Twilight Sensor WS 10 D

Manufacturer: Jung
Designation: Twilight Sensor 24V DC
Type: WS 10 D
Bus System KNX: yes
Bus System KNX Wireless: no
Bus System Wireless Bus: no
Bus System LON: no
Bus System Powernet: no
Other Bus Systems: none
Bidirectional Wireless: no
Mounting Type: Surface-mounted
With LED Display: no
Sensor Type: Built-in Light Sensor
With Bus Coupling: no
Number of Channels: 1
Setting: 0..255 lx
Protection Class (IP): IP65

Operating Voltage: 24 V DC
Measuring Range: 0 to 255 Lux, linear
Function: The three measuring sensors for brightness, twilight, and temperature record climatic data depending on the sensor type and convert it into analog voltage signals (0 ... 10 V). To evaluate these signals, an analog input is required, which can send measurement or command telegrams to the KNX depending on the analog signals. The sensors are equipped with pressure compensation elements (climate membrane) to prevent moisture formation inside the housing.

Connection: The supply line is routed through the PG7 cable gland to the terminal blocks.
+UB: Operating Voltage 24 V DC
GND: Reference Potential (Ground) isolated
OUT: Output 0 ... 10 V
EAN: 4011377069459.
