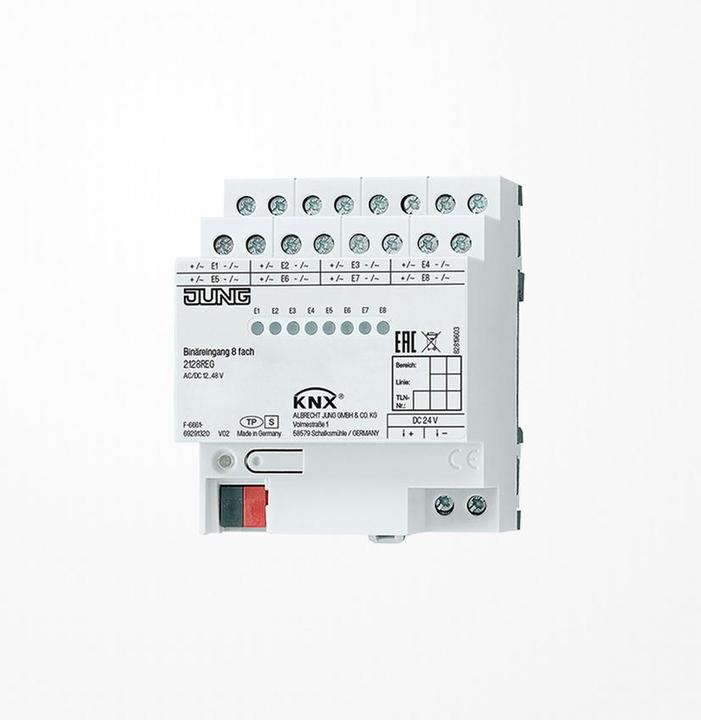

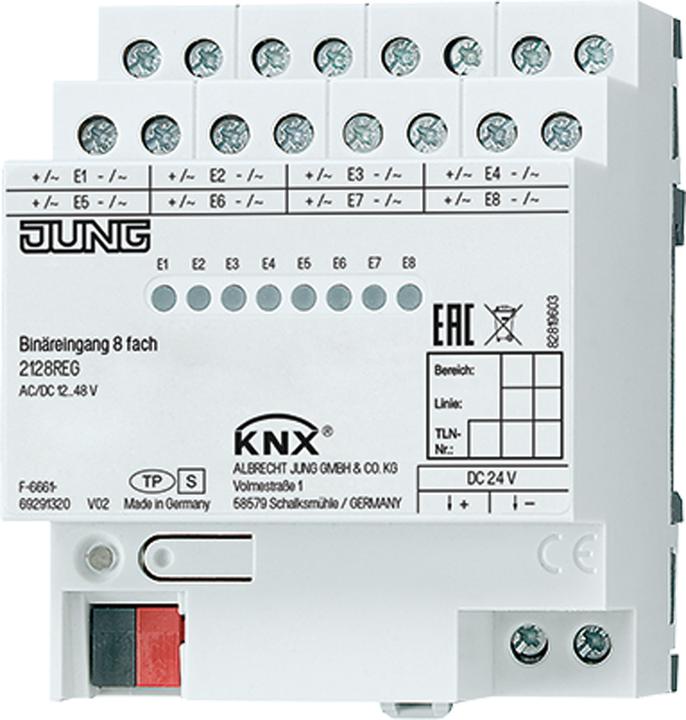

JUNG Binary input KNX REG 4TE LED 8f 2128REG
In Detail
The KNX REG 4TE LED 8f 2128REG binary input from JUNG is a versatile accessory for distribution cabinets, specifically designed for integration into KNX systems. With eight inputs supporting voltages from 12 to 48 V AC/DC, this device allows for the querying of conventional switch or push-button contacts as well as window contacts. It is ideal for reporting statuses, meter readings, and controlling consumers. The binary input is designed for mounting on a DIN rail according to DIN EN 60715, providing easy installation in sub-distributors. The integrated status indicator and the ability to connect external AC and DC voltages enhance the functionality and flexibility of the device. Additionally, no separate power supply is required, further simplifying installation.
- Status LED for each input for easy monitoring
- Detection of voltage levels and changes at the input
- Functions such as switching, dimming, and scene management
- Inputs can be individually locked for increased security
- Auxiliary voltage output DC 24 V (SELV) for querying potential-free contacts.
