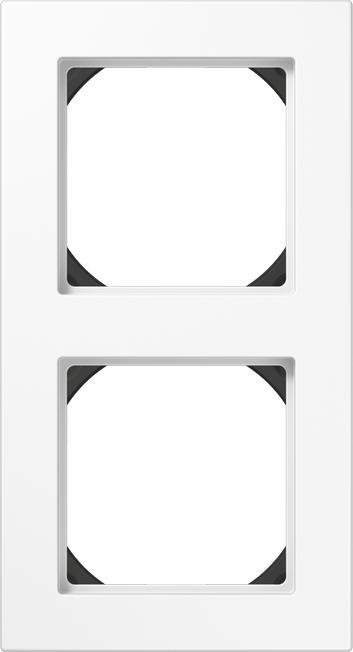

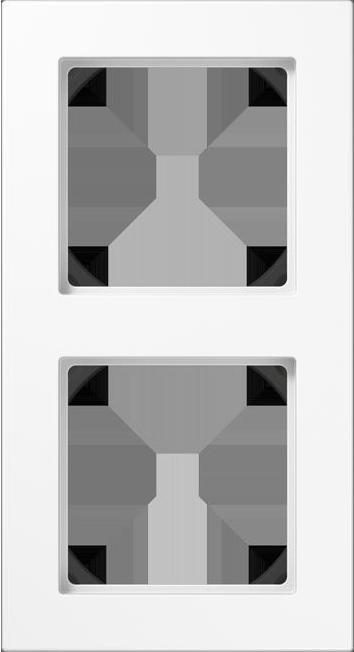

JUNG A5582HBFWW Frame 2gang A 550 28mm

Jung Frame 28 mm A 5582 HBF WW

Manufacturer: Jung
Description: Frame 28 mm horizontal/vertical
Type: A 5582 HBF WW
Number of units: 2
Mounting direction: horizontal and vertical
Number of units horizontal: 1
Number of units vertical: 2
With mounting frame: no
Suitable for device installation channel: yes
Suitable for flush mounting: yes
Text field/labeling area: no
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: other
Surface finish: glossy
Color: white
RAL number (similar): 9016
Transparent: no
With flap cover: no
Protection class (IP): IP2X
Mounting type: other
Width: 156 mm
Height: 85 mm
Depth: 28 mm
Installation width: 55 mm
Installation height: 55 mm

The Jung Frame 28 mm A 5582 HBF WW has a double installation height and is available in alpine white. It is suitable for horizontal and vertical combinations in the A series. This frame allows the installation of flush-mounted devices with a large installation depth into an existing shallow device box. The frame elevates the device support ring from the wall, providing an additional 17 mm of installation depth. Note: Ensure sufficient clearance between the device and the bottom of the device box (8 mm clearance according to VDE).

Material: Thermoplastic
Dimensions (W x H): 156 x 85 mm.
