Jessberger Electric drum/container pump set, for slightly aggressive acids and slightly

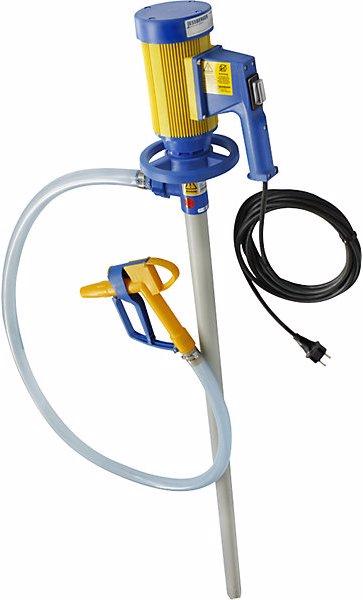

Electric drum/container pump set for slightly aggressive acids and slightly alkaline solutions, with a flow rate of 112 l/min and a height of 16 m. The low pump weight makes it easy to handle, allowing for safe and fast emptying of 1000 litre IBC/CTC containers and 200 litre drums. This practical pump set is ready for immediate use.

The electric pump set is designed for IBC/CTC tank containers and 200 litre drums, suitable for slightly aggressive acids and slightly alkaline solutions. It has a maximum flow rate of 112 l/min, a maximum height of 16 m, a maximum viscosity of 1000 mPas, and a maximum density of 1.9 g/cm³. The pump unit is made of polypropylene with an HC shaft, PVC hose, and a polypropylene nozzle with FKM seals.

The drum pump motor operates at 230 V, 50/60 Hz, with a power of 825 W, protection class IP24, and double insulation for protection class II. It includes an overcurrent circuit breaker with zero voltage trip and a 5 m cable with a safety plug. The pump unit features an external diameter of 41 mm and an immersion tube length of 1200 mm, allowing it to extend beyond the drum by approximately 200 mm. It has a connection thread of G 1 1/4'' and a hose connection of 1'' (NW 25), along with a 2 m PVC hose of 1'' (NW 25) and two stainless steel hose clamps. A polypropylene nozzle of 1'' with FKM seals is also included.

Please note: If media compatibility is unclear, please inquire about the suitability of the pumps beforehand.
