Hoymiles Mains plug

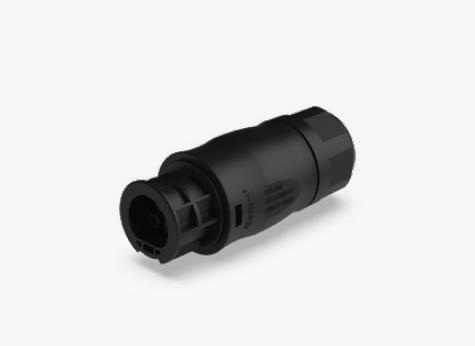

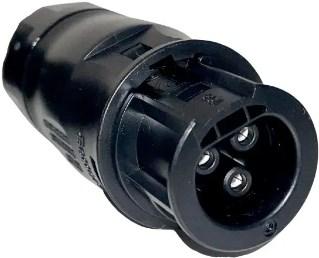

The Betteri BC01 Female Socket is designed for connection to Envertech, Hoymiles, or Huayu inverters. The opposite side can be connected to an H07RN-F rubber cable with a diameter of 10-14 mm. This is a three-pole socket made from UV-resistant material. Additionally, it is dust and waterproof according to protection class IP68, making it suitable for both indoor and outdoor use.

Product Features:

• Suitable for single-phase inverters from e.g. Envertech, Hoymiles, or Huayu
• Compatible with cables with a diameter of 10-14 mm
• Dust and waterproof according to IP68
• UV-resistant – suitable for indoor and outdoor installation

Technical Specifications:

• Number of poles: 3-pole
• Material (housing): Plastic (PPO Polyphenylene Oxide)
• Impulse voltage withstand: 4000 V AC
• Ion flow and extraction force: 10~50 N
• Flammability class: UL94-V0
• Operating temperature range: -40 °C - +85 °C
• Rated voltage: 250 V AC
• Rated current: 25 A (4 mm²)
• Dimensions: 85.5 x 34.8 x 34.8 mm
• Weight: approx. 50 g

Delivery includes:
1x Betteri BC01 Female Socket Plug.
