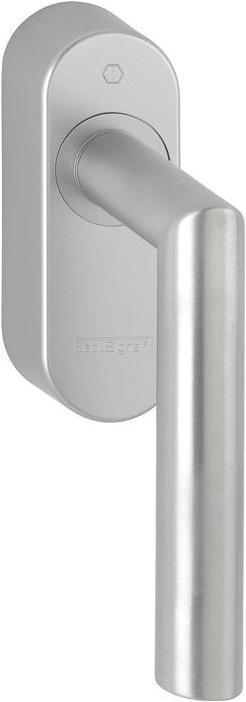

Hoppe Window handle F69 20-30 mm

Scope of delivery:

• 1x HOPPE stainless steel window handle 20-30 mm

Product description:
HOPPE eWindow handle SecuSignal® stainless steel turn/tilt radio window handle with Secustik® and VarioFit®: Latching action: 90° - Cover: Full cover cap - Substructure: Plastic, support cams - Pin: HOPPE full pin, 10 mm length variability (20-30mm or 32-42mm), infinitely variable adjustment thanks to integrated compression spring in the handle neck - Fixing: concealed, M5 threaded screws - Temperature range: storage -20 °C to +65 °C, operation +5 °C to +40 °C - Relative humidity: max. 80 %, non-condensing - Radio protocol: EnOcean EEP F6-10-00 - Radio frequency: 868 MHz - Transmission rate: 120 kbps +/-5 % - Transmitted information: Handle position (open/tilt/closed) - Transmission power: max. 10mW EIRP - Radio range: according to EnOcean specification max. 30 m, depending on building conditions - Power supply: battery-free, via energy harvesting

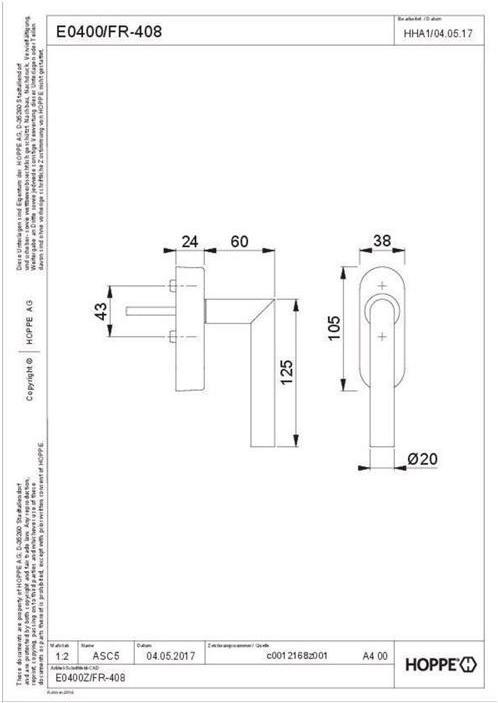

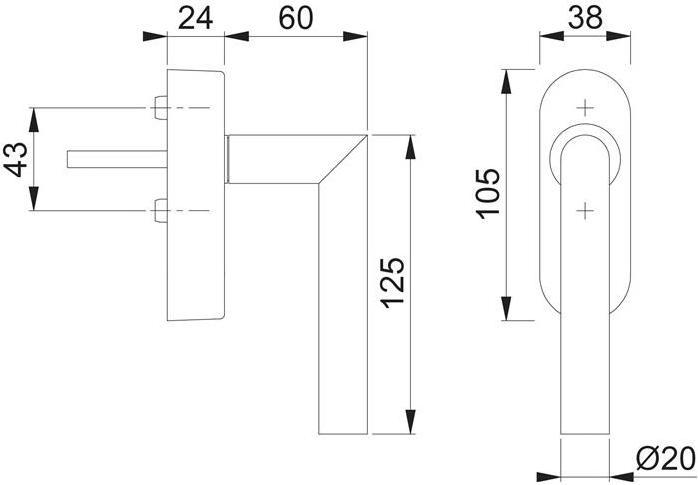

Technical data:

• Handle length: 125mm
• Hole spacing: 60mm
• Base thickness: 24mm
• Square: 7mm
• Material: stainless steel
• Surface: matt
• Pin projection: 20-30 mm
• Colour no.: F69
• Direction: DIN left / right
• Radio standard: EnOcean
• Plinth height: 105 mm
• Handle Ø: 20 mm
• Brand: HOPPE
• Plinth width: 38 mm
• Version: eWindow handle
• Latching action: 90°
• Model: Amsterdam E0400/FR-408
• EnOcean EEP: F6-10-00

For commercial use, please observe the building regulations!.
