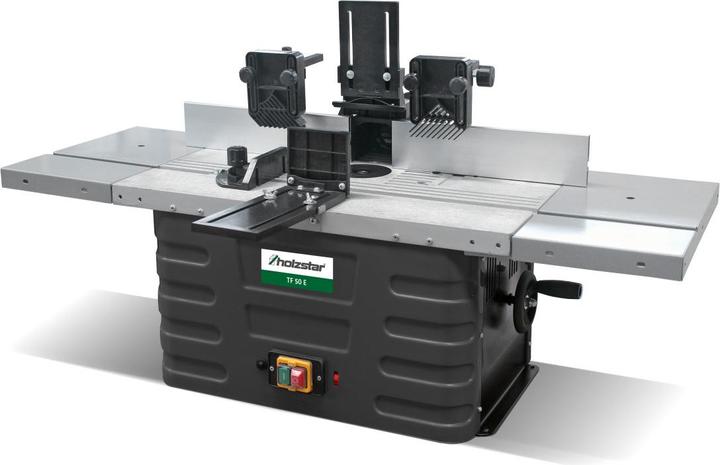

Holzstar Table milling machine TF 50 E 5901905 Milling table Milling machine

Compact and handy design for comfortable use. Variable speed range from 11,500 to 24,000 rpm. Spindle height adjustable from 0 to 40 mm. Large table surface with standard extensions on both sides. Work table made of aluminum. Includes miter gauge and various collets.

Technical Data:
Dimensions and Weights:
Max. Length (Product) approx. 610 mm
Max. Width/Depth (Product) approx. 360 mm
Length (Product) approx. 1,030 mm
Max. Height (Product) approx. 311 mm
Width/Depth (Product) approx. 360 mm
Height (Product) approx. 311 mm
Net Weight approx. 21 kg

Dust Extraction Connection:

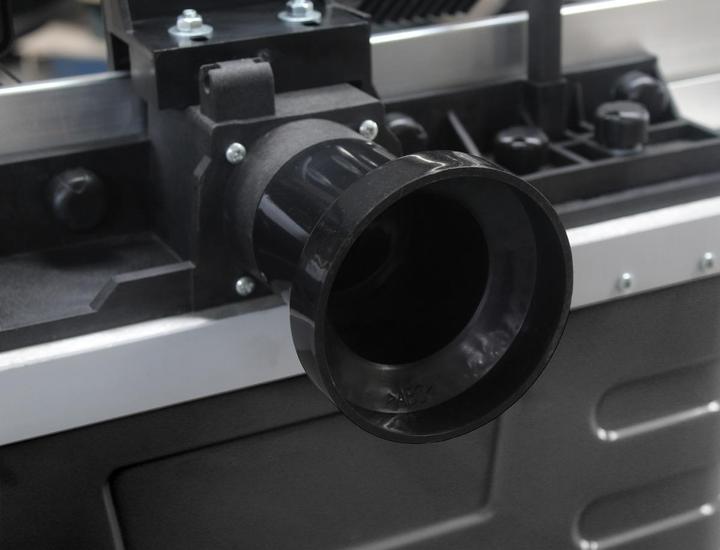

Dust extraction port diameter 100 mm

Work Table:
Work table length 610 mm
Work table width 360 mm
Table height 311 mm

Features:

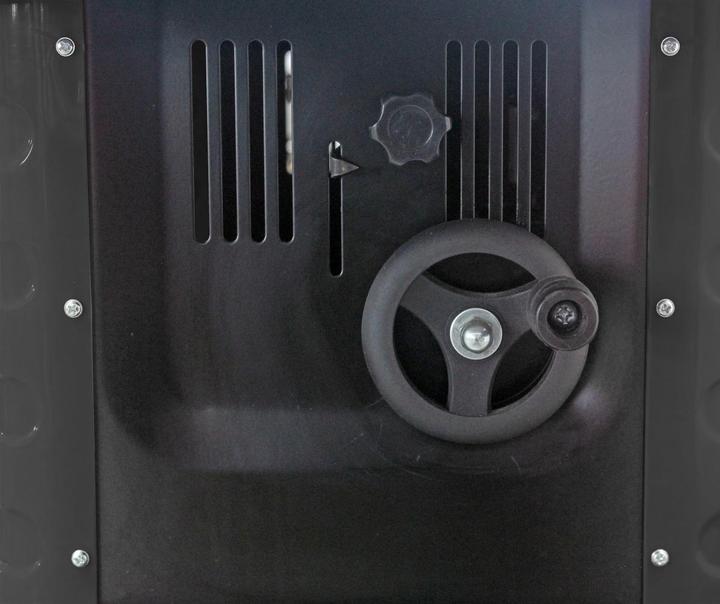

Manual spindle height adjustment

Electrical Data:
Connection voltage 230 V
Mains frequency 50 Hz
Drive motor power 1.5 kW
Protection class drive motor IP20
Rated duty cycle drive motor S1

Milling Spindle:
Milling spindle stroke 40 mm
Spindle speed(s) 11,500 – 24,000 rpm
Max. milling tool diameter 50 mm

Scope of Delivery:
Table extensions on both sides

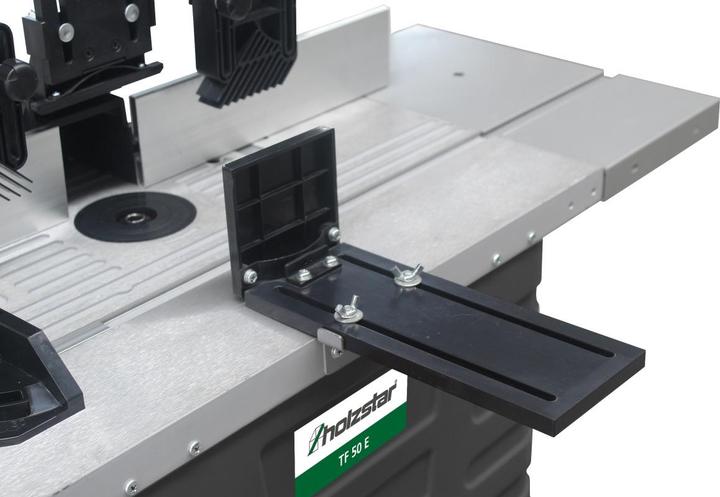

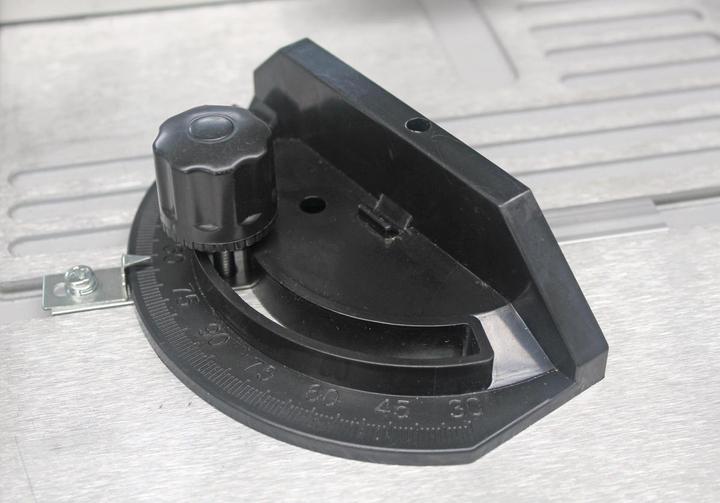

Miter gauge

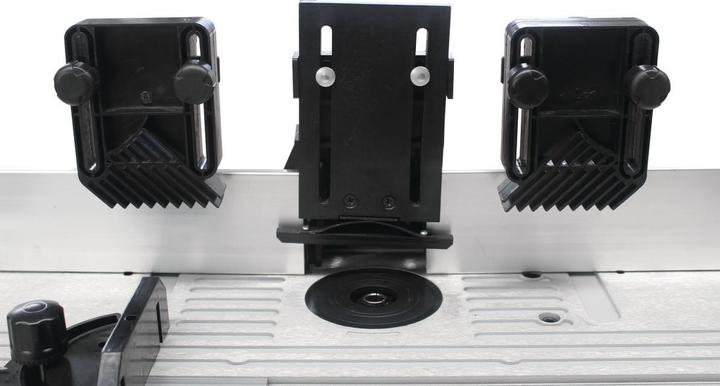

Aluminum milling stop
Collets for 6, 8, and 12 mm
Assembly tools (4 mm and 5 mm hex keys, SW19 and SW24 wrenches).
