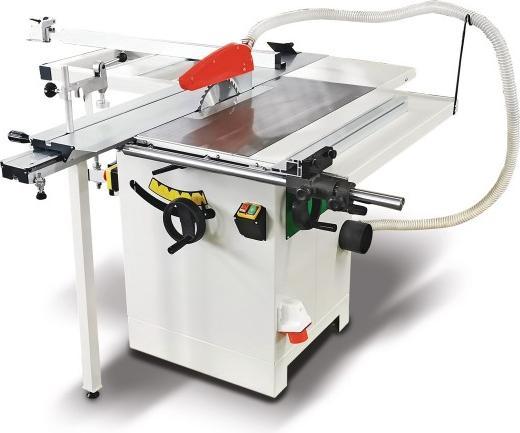

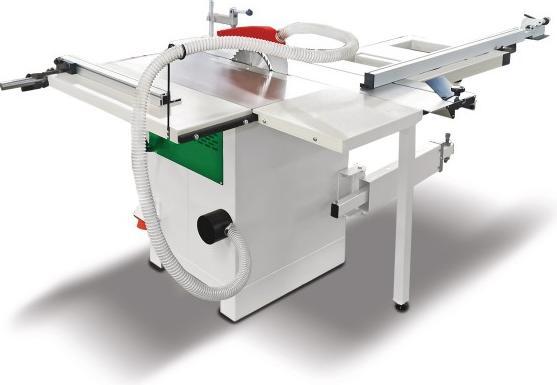

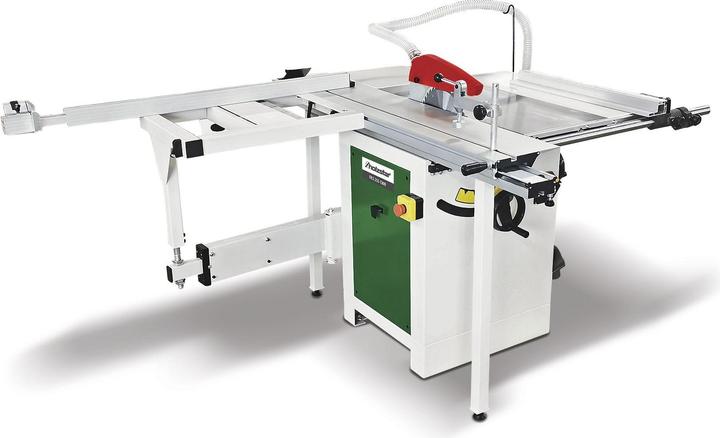

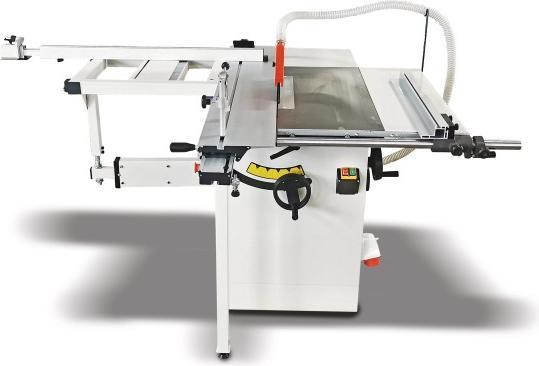

Holzstar Circular saw

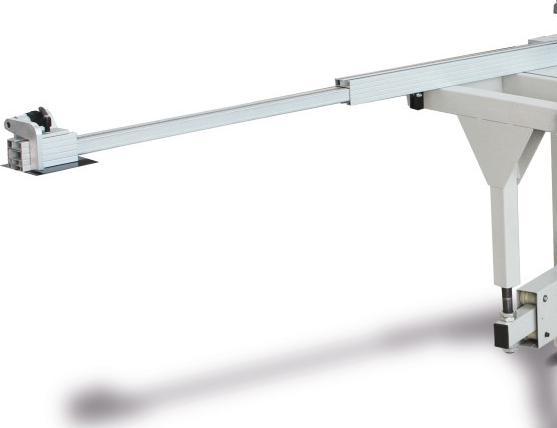

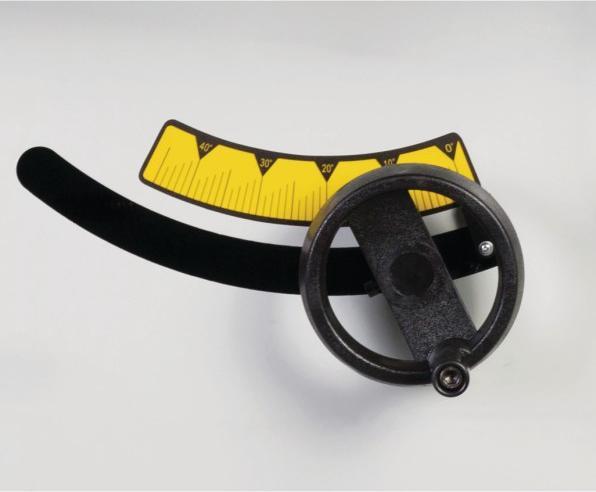

Heavy-duty work table made of gray cast iron for vibration-free work and precise, straight cuts. The saw unit can be tilted up to 45 degrees, with adjustment via a handwheel. The cutting plane is directly at the saw blade. The table extension features a retractable telescopic stop and two folding stops for panels and large workpieces. The telescopic stop can be tilted 45 degrees on both sides. Aluminum parallel stop on round rod guidance with fine adjustment. Standard table widening and extension allow for easy handling of larger workpieces. Large central dust extraction connection with a diameter of 100 mm.

Technical Data:
Dimensions and Weights:
Length (Product) approx. 1320 mm
Width/Depth (Product) approx. 1750 mm
Height (Product) approx. 1120 mm
Weight (Net) approx. 155 kg

Dust Extraction Connection:
Dust extraction port diameter 100 mm
Dust extraction port diameter saw blade guard 30 mm

Equipment:
Handle for sliding carriage: Yes
Saw parallel stop with round rod guidance
Table widening: Yes
Table extension: Yes
Saw blade guard hood: Yes

Electrical Data:
Connection voltage 400 V
Mains frequency 50 Hz
Power consumption 2.0 kW
Output power 1.5 kW
Total connection value 3.5 A
Motor speed 2800 min¯¹

Sliding Carriage and Table:
Trimming frame length 600 mm
Trimming frame width 460 mm
Format sliding carriage length 1320 mm
Format sliding carriage width 238 mm
Table length 790 mm
Table width 350 mm
Table height 835 mm

Noise Emission:
Sound pressure level 83.7 dB(A)

Circular Saw Unit:
Cutting width with parallel stop 610 mm
Max. cross-cut width left of the saw blade 845 mm
Trimming length 1250 mm
Saw blade tilt 90 – 45 °
Max. cutting height 90° 80 mm
Max. cutting height 45° 54 mm
Saw blade diameter 254 mm
Saw blade speed 4000 min¯¹

Scope of Delivery:
Trimming shoe
Excenter clamp
Angle stop -45° to 45°
Circular saw blade 254 x 30 x 3.0 mm Z40.
