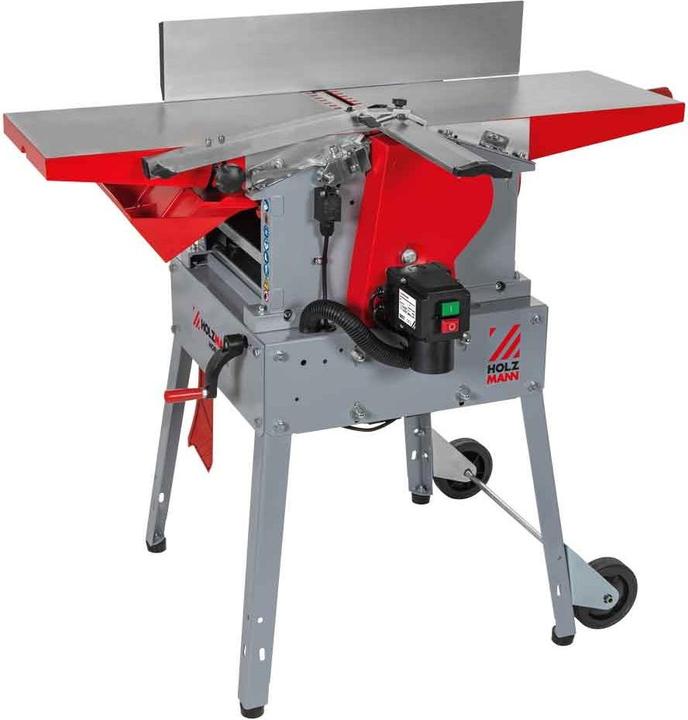

Holzmann HOB260MINI 400V Abricht-Dickenhobelmaschine

Holzmann HOB260MINI Surface and Thickness Planer Machine 260 mm 400V

Special Features
The compact thickness planer machine HOB260MINI, featuring a mobile unit and reversible planer knife, is an essential addition to your woodworking shop. With a planing and thickness planing width of 260 mm and an inlet for thickness planing, you can create impressive projects.

Strengths

• Compact planer and thickness planer machine

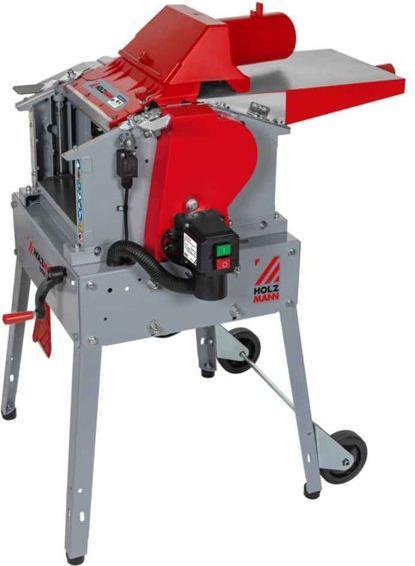

• Easy conversion from planer to thickness planer
• Thick tabletop made of solid cast iron
• Reversible planer knife
• Planing fence adjustable from 90° to 45°
• Equipped with an integrated muscle-skeleton system

Technical Data

• Planing table size in mm: 1040 x 260
• Max. thickness cutting depth in mm: 3
• Planing guide in mm: 1100 x 150
• Fence inclination: 90-45°
• Motor power s6 in W: 2200
• Voltage: 400V / 3 / 50Hz
• Feed speed: 5 meters per minute
• Table height in mm: 860
• Dust extraction opening in mm: 100
• Table size in mm: 400 x 260
• Cutting depth in mm: 3
• Thickness height in mm: 160
• Shaft diameter in mm: 63
• Shaft speed in min-1: 6500
• Number of cutting knives: 2
• Sound power level in dB(A): 102.1 / 99.1
• Sound pressure level in dB(A): 95.6 / 91.5
• Gross weight in kg: 79.50
• Net weight in kg: 72
• Package width in mm: 570
• Package length in mm: 710
• Package height in mm: 590.
