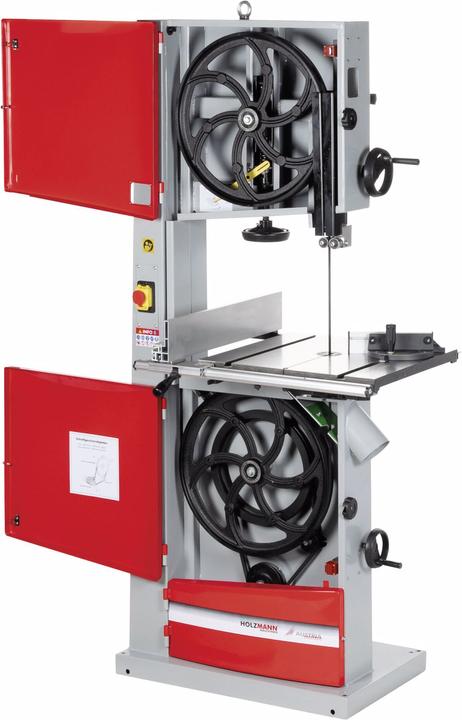

Holzmann HBS 470 professional wood band saw

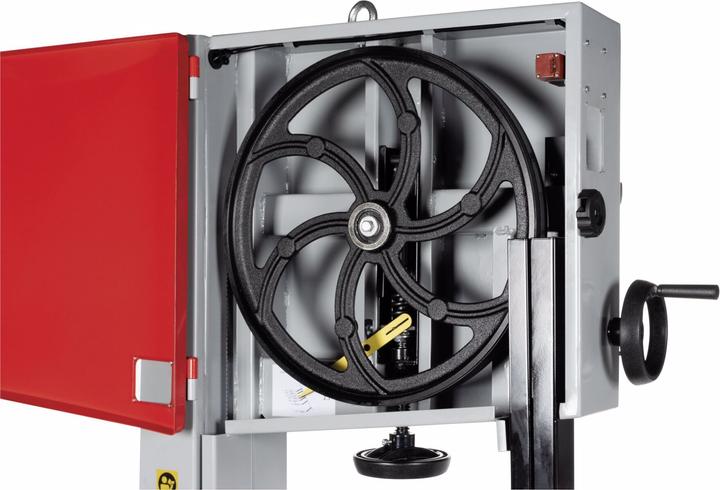

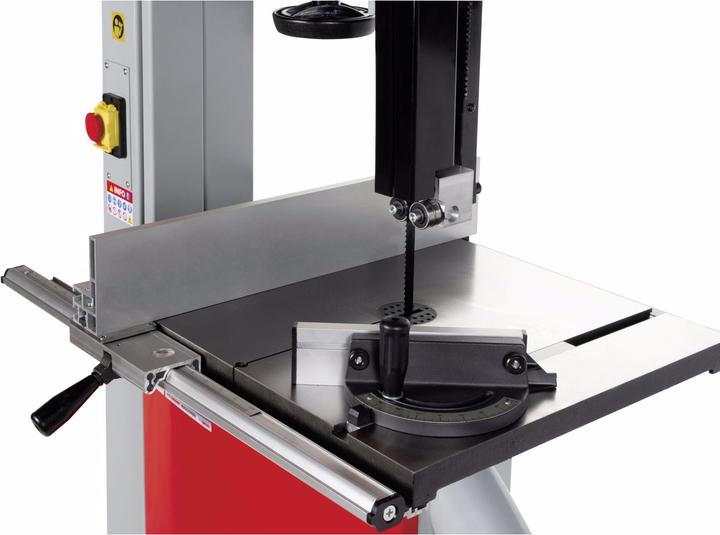

For professional use: Holzmann HBS470PROFI features include gummed and precision bearing cast spoke wheels for quiet operation, an aluminum fence with quick release, a measurement scale on the fence, and a magnifying glass for accurate reading and adjustment. The cutting height adjustment is easily and quickly adjustable via a handwheel-rack combination. The saw band width ranges from 6mm to 25mm.

Machine height is 186cm with two speeds (380 and 820 m/min). The table inclination can be adjusted from 0° to 45° via a toothed guide, and there are two connection possibilities for suction (Ø100 mm).

Motor power S6 is 2100 W and motor power S1 is 1500 W, with a voltage of 230V. The swivel range is -10° to +45°.

Table size is 530x480 mm, throat is 465 mm, and table height is 960 mm. The suction connection is 100 mm.

Cutting capacities include a maximum cutting height of 285 mm at 90°, a cutting width at the rip fence of 390 mm, a saw band length of 3454 mm, an impeller diameter of 470 mm, and a saw band speed of 380/820 m/min.
