Holzmann BF500 400V milling machine

Ratings
Delivered between Fri, 19.9. and Thu, 25.9.
Only 2 pieces in stock at supplier
free shipping

Product details

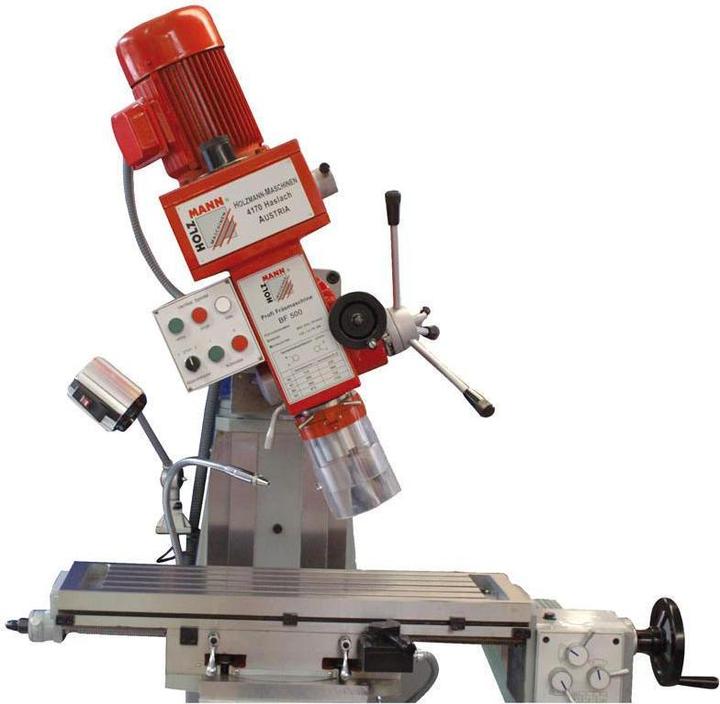

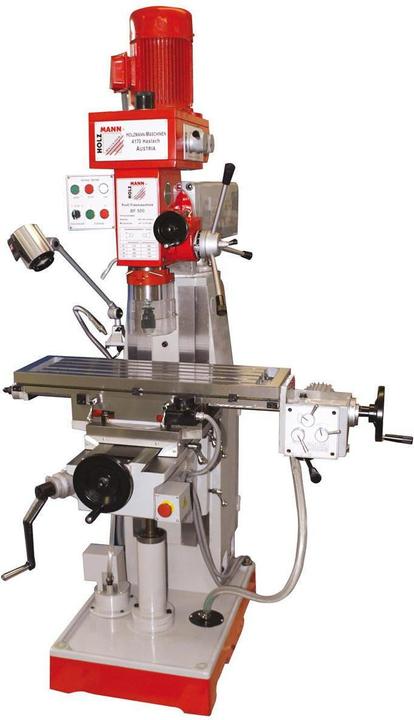

Holzmann BF500 400V Milling Machine

Features:

  • Heavy and vibration-absorbing cast iron design
  • Robust and swivelling (+90° -90°) vertical milling head with gear shift
  • Oil bath gearbox with ground, hardened gear wheels
  • Left/right rotation
  • Tapping up to max. M16 possible
  • Pinol feed via three-hand lever and fine feed
  • Massive and large cross table with 14 mm T-slots for fastening, e.g., automatic feed of the X-axis (370W, 24-720mm/rev (8)) with speed adjustment via gearwheel drive
  • Automatic and adjustable limit stop of the X-axis
  • Dovetail guides of the table adjustable via wedge strips
  • Includes coolant unit and halogen lamp

Technical data:

  • Voltage: 400V (a 400V connection is required)
  • Power: 800 / 1500 watts
  • Table size: 1000 x 240 mm
  • Outreach: 260 - 695 mm
  • Milling spindle holder: ISO 40
  • Milling spindle speed: 115 - 1750 rpm
  • Head tilt: +/- 90°
  • Travel Z-axis: 400 mm
  • Travel Y-axis: 230 mm
  • Travel X-axis: 560 mm
  • Max. spindle-table distance: 350 mm
  • Max. drilling capacity steel: Ø 50 mm / (M16)
  • Max. finger cutter diameter: Ø 25 mm
  • Max. face milling cutter diameter: Ø 80 mm
  • Slot size: 14 mm
  • Weight: 800 kg

Scope of delivery:

  • Feed X-axis
  • Coolant device

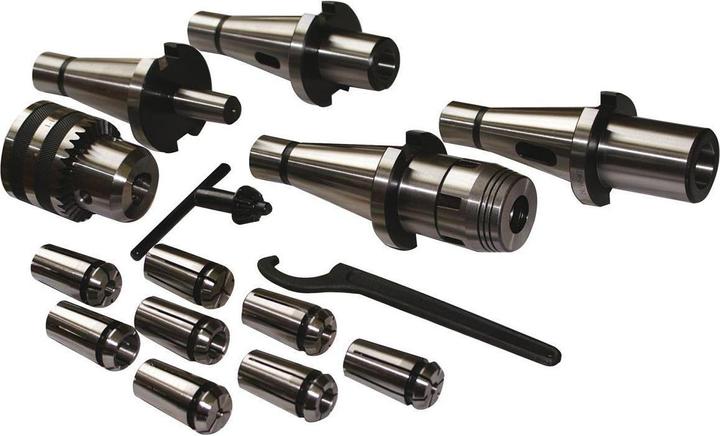

  • Collet set 8 pcs (4, 5, 6, 8, 10, 12, 14, 16 mm)
  • Drill chuck 1-16mm (B18)
  • 1x MK2
  • 1x MK3
  • 1x B18 holder

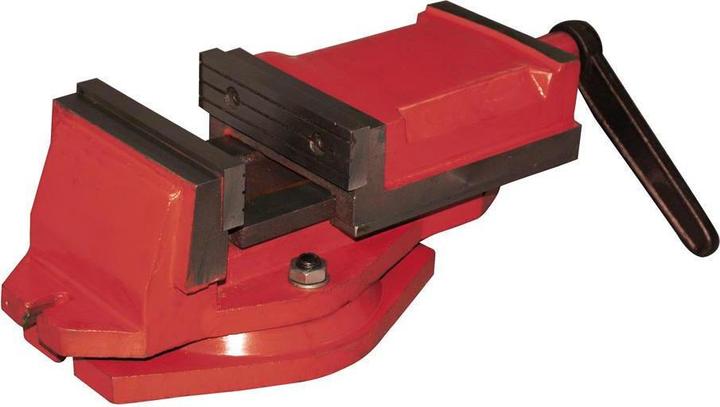

  • Machine vice 160mm
  • Halogen lamp
  • Tightening spindle M16

Please note: Electrical connection work/installations may only be carried out by qualified specialist personnel.

Key specifications

Router type
Milling machine
Power supply
Electrical connection
Power
800 W
Item number
34998787

General information

Manufacturer
Holzmann
Category
Routers + Disc cutters
Manufacturer no.
BF500_400V
Release date
17.5.2023

Colour

Colour
Silver
Exact colour description
Silver / Red

Milling machine properties

Router type
Milling machine
Milling basket stroke
80 mm

Energy supply

Power supply
Electrical connection

Battery / accumulator features

Battery equipment
No batteries supplied

Mains operation Features

Mains voltage
400 V

Power

Power
800 W
Max. Idle speed
1750 rpm

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1xMK2 - 1xMK3 - 1xB18 Recording, Collet set 8 pcs (4, 5, 6, 8, 10, 12, 14, 16 mm), Coolant device, Drill chuck 1-16mm (B18), Feed X-axis, Halogen lamp, Machine vice 160mm, Tightening spindle M16

Product dimensions

Weight
800 kg
Length
1000 mm
Width
240 mm
Height
2080 mm
Diameter
50 mm
