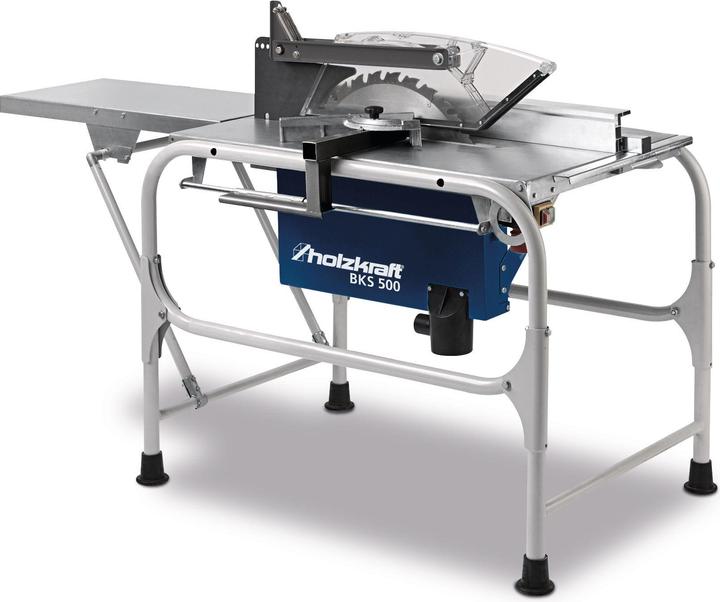

Holzkraft BKS 500 circular saw

Description: Optimal user safety due to the pendulum safety guard - meeting the strictest requirements and approved by the BG. Transparent guard for optimal visibility of the cutting line. Angle-adjustable cross-cutting device with wedge cutting gauge guided on a round bar via maintenance-free sliding bearings. Aluminum parallel stop with high and flat edge and eccentric clamping allows for trimming boards, rip cuts, bevels, and angle cuts. Foldable table extension for long workpieces. Durable cutting precision of the highest quality thanks to a powerful motor.

Features: Pendulum safety guard, transparent. Stable, foldable tubular frame, galvanized and powder-coated. Large, non-slip rubber footplates. Angle-adjustable cross-cutting device with wedge cutting gauge, foldable. Aluminum parallel stop with high and flat edge. Table extension (800 x 400 mm), foldable. Large crane eyes. Beveling tool. Holders for aluminum parallel stop and assembly tools.

Technical Data: Dimensions and weights: Length (product) approx. 1870 mm, Width/Depth (product) approx. 810 mm, Height (product) approx. 1170 mm, Weight (net) approx. 103 kg. Connection for dust extraction: Dust extraction port diameter 50/95 mm. Equipment: Table extension yes, saw blade guard yes. Electrical data: Connection voltage 400 V, network frequency 50 Hz, power consumption 4.2 kW, output power 3.3 kW, protection class drive motor IP 54, rated operating mode drive motor S6 40%, efficiency class drive motor IE3, total current consumption 7.1 A.

Sliding table and table: Table length 1000 mm, table width 660 mm, table height 850 mm. Circular saw unit: Max. cutting height 90° 150 mm, saw blade diameter 500 mm, saw blade speed 2800 mm.

Scope of delivery: HM saw blade Ø500 mm Z44, foldable table extension 800 x 400 mm, pendulum safety guard, push stick, sliding handle, tool for saw blade change.
