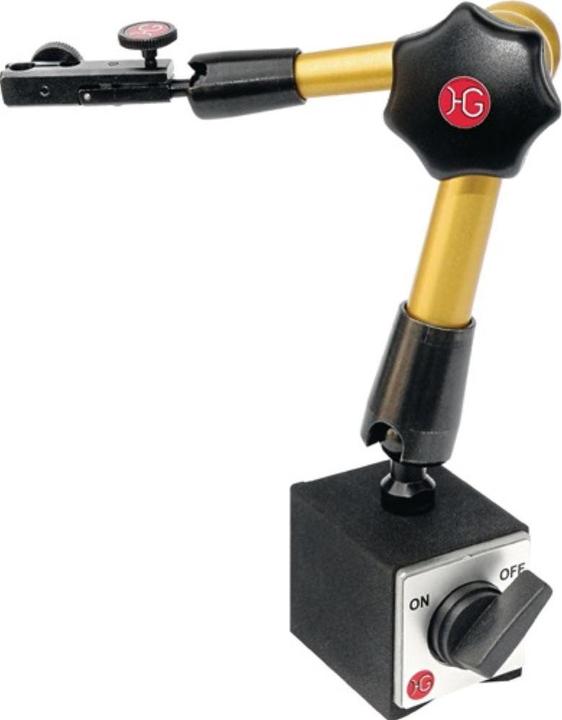

HG Articulated stand Operating radius 260 mm hydraulic

Design: Hydraulic measuring stand with central clamping. One hand can remain free for setting up the dial gauge. All joints are rigidly clamped by the central knob. Patented mechanics generate high pressure, allowing the handwheel to be turned with minimal force. Oil hydraulics are secured against oil loss by double seals. Clamping force can be adjusted continuously. The arm joints are 360° rotatable and can be pivoted over 180° at the gauge holder. The gauge holder is compatible with dial gauges with a shaft diameter of 8 mm or a prism. Magnetic base with a prismatic sole. Strong permanent magnet. Rotary switch to turn the magnetic force on and off. The magnetic force acts through the flat back and the prismatic underside of the base. Note: Hydraulic measuring stands can withstand high temperature fluctuations when unclamped. The oil requires some time to adjust to the temperature. In the clamped state, a maximum temperature difference of 15 °C can be achieved without significant pressure fluctuations, which could lead to damage to the stand or the held objects. Delivery includes: Magnetic base No. 440868 size 1.
