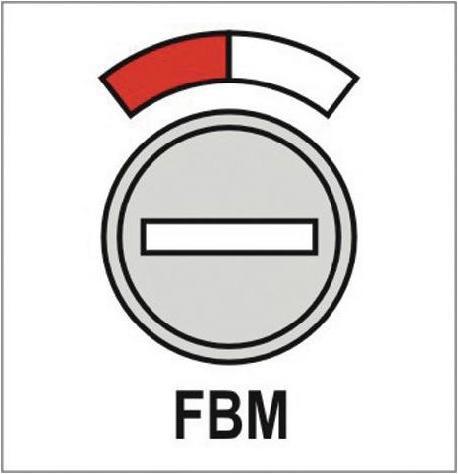

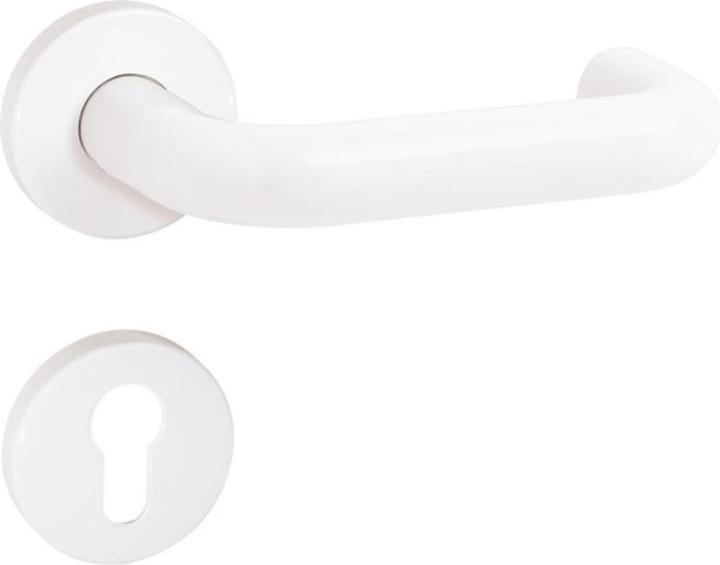

Hewi Rosette set 111R02.230 plastic 90 round FBM DIN left / right D/D

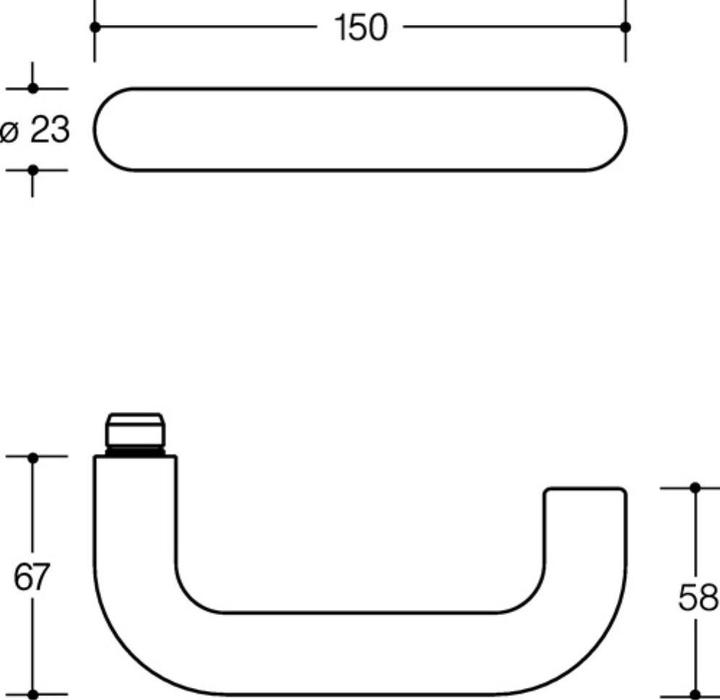

In R-technology with roses according to DIN 18255 and DIN EN 1906 made of polyamide, high-gloss surface, consisting of: U-shaped lever handle made of polyamide with continuous steel core up to the end of the lever handle, dyed throughout, diameter 23 mm, with shoulder guide and detent groove, mounting by simply snapping the lever handle into the bottom parts pre-mounted on the door. The detent can be released again by means of a dismantling key. The lever handle fulfils the requirements of DIN EN 179 and DIN 18040. Rosette substructure in plastic-stainless steel composite construction, can be used DIN left and DIN right. Fixed pivot bearing of the lever handle with automatically engaging all-round locking and 5 mm bearing point as maintenance-free slide bearing with elastic compensation area and second bearing point in the lever handle neck. Concealed, loosening-proof screw connection with M4 screw and sleeve screw combination as well as support pin. Rosette cover cap, round, made of polyamide dyed throughout, diameter 55 mm, 13 mm high, curved, 1.5 mm wall thickness. Designed and tested for the contract sector, use category according to DIN EN 1906 - class 4 set with square spindle 8 mm - for door thickness 38-48 mm - handle length 150 mm - handle set Further technical features: - Handle length: 150mm - Mounting system: R-technology - Handle depth: 67mm - Cam spacing: 38mm
