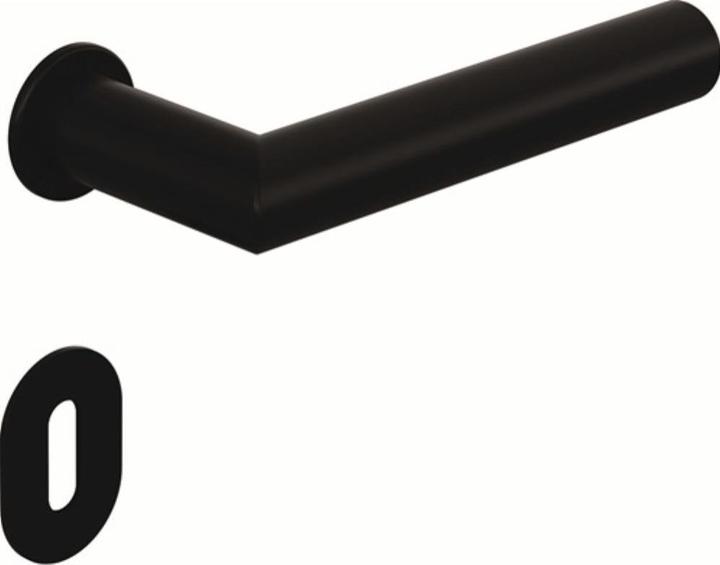

Hewi Pair of lever handles 162PBM/162PBMV/162PBMX PVC-U 90m-90m with mini lever handle rose Square

Mini in matt edition - with flat polyamide lever handle rose, diameter 32 mm, consisting of: Mitred polyamide lever handle with continuous steel core into the lever handle end, dyed throughout, matt finish. Model 162PBM with lever handle rose: coloured throughout, matching matt finish. Model 162PBMV with lever handle rosette: PVD coated, copper-coloured matt finish. Model 162PBMX with lever handle rosette: satin stainless steel diameter 21.3 mm, with lug guide - square pin of the lever handle pin part 8 mm with trapezoidal thread - fixing of the lever handle in a press-fit bearing with circumferential serration and a polyamide plain bearing bush with two cams as anti-rotation protection in the press-fit bearing. The M5 grub screw is fixed in a recess in the square pin to secure the lever handle hole parts and thus contributes to optimum force transmission into the door leaf. Use in combination with mortise locks according to DIN 18251. Mounting of the press-in bushes by means of a mounting nut with trapezoidal thread SW 19, therefore we recommend mounting with a ring spanner (SW 19). The milling dimension in the area of the lock follower must have a nominal dimension of 25 mm. Manufacturing tolerances of +/- 1 mm can be compensated for by the press-in bearing. For mounting on residential and interior doors with HDF top panel and centre layers made of tubular chipboard. We recommend fitting mini exclusively to door elements tested by HEWI and the door manufacturers. Designed and tested for the contract sector - usage category according to DIN EN 1906 - class 4 - hinge direction DIN left/right. Further technical features: Fixing system: standard pin.
