Product details

Hettich Marking Template "MultiBlue" for Cup Hinges - 9220193

  • For cup hinges with a diameter of 26 mm and 35 mm, as well as connecting fittings
  • Easy marking template: the ideal companion for on-site assembly, where fittings need to be expertly installed without large machines
  • Handy, compact, and multifunctional

The 2-sided MultiBlue marking template allows for marking of:

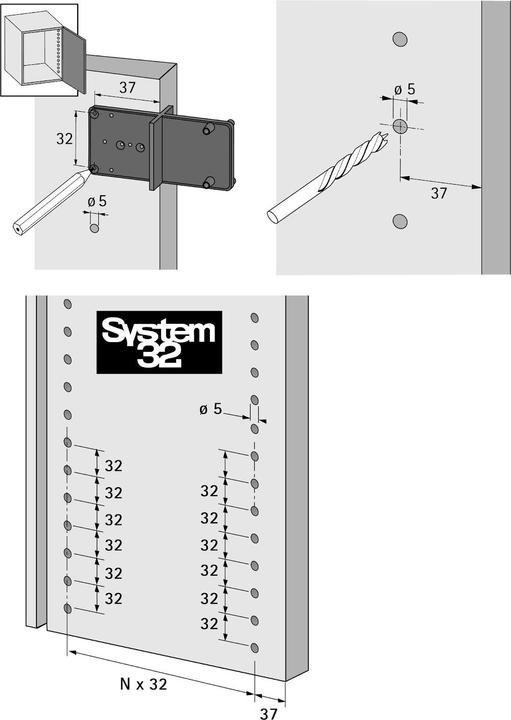

  • System holes in a 32 mm grid for mounting plates, dowels, and floor supports

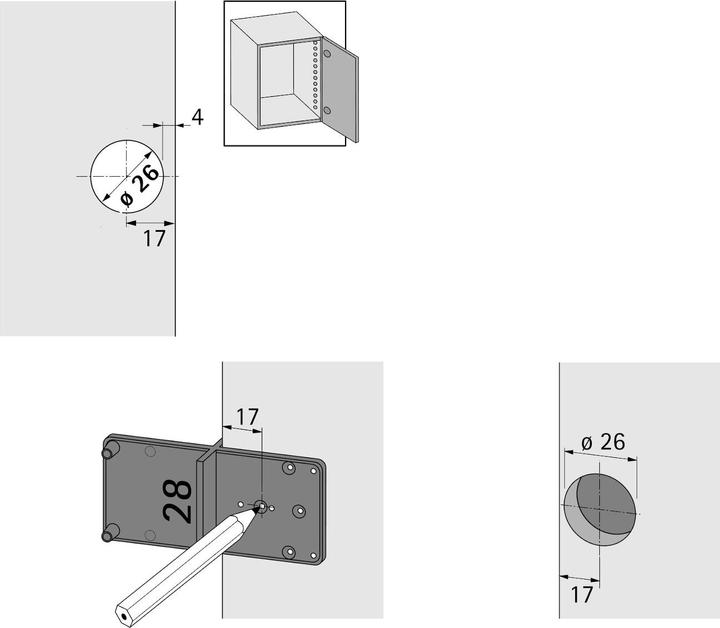

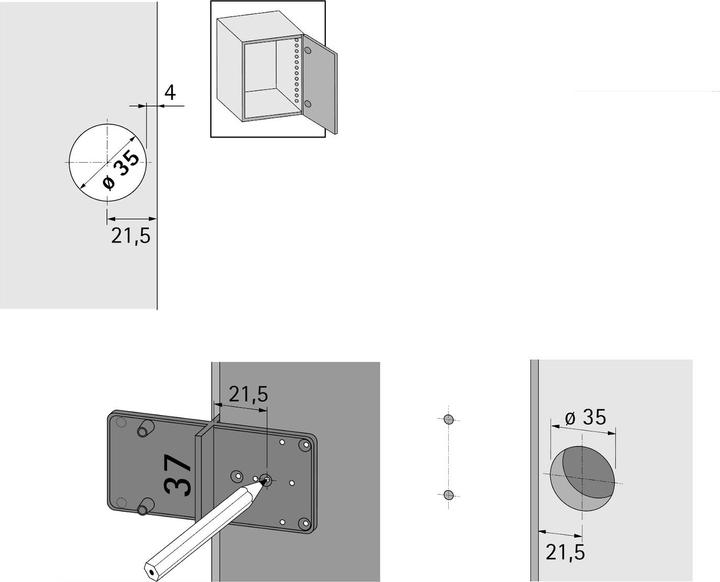

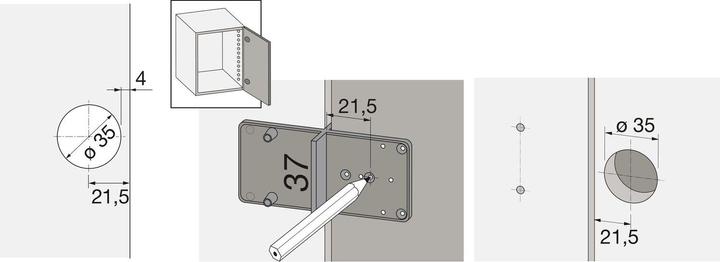

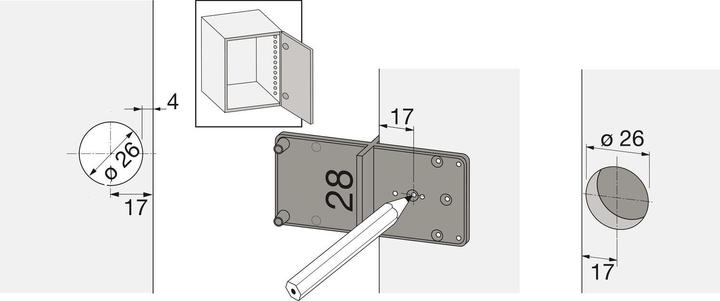

  • Cup holes with a diameter of 35 mm and 26 mm with a C-dimension of 4 mm for hinges

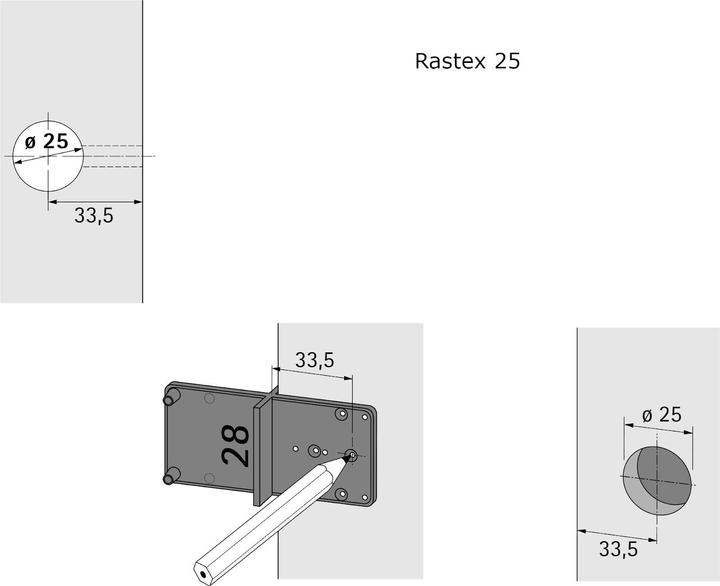

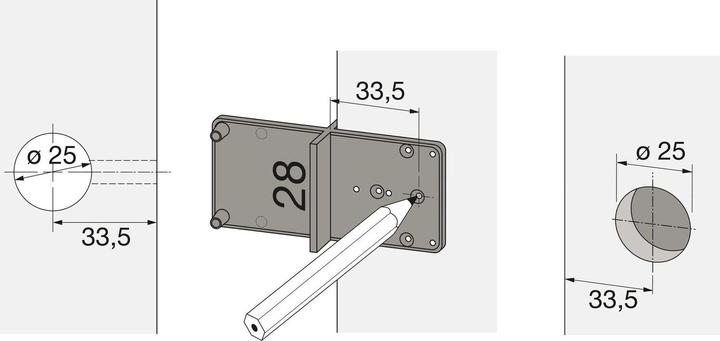

  • Holes with a diameter of 25 mm for connecting fitting Rastex 25

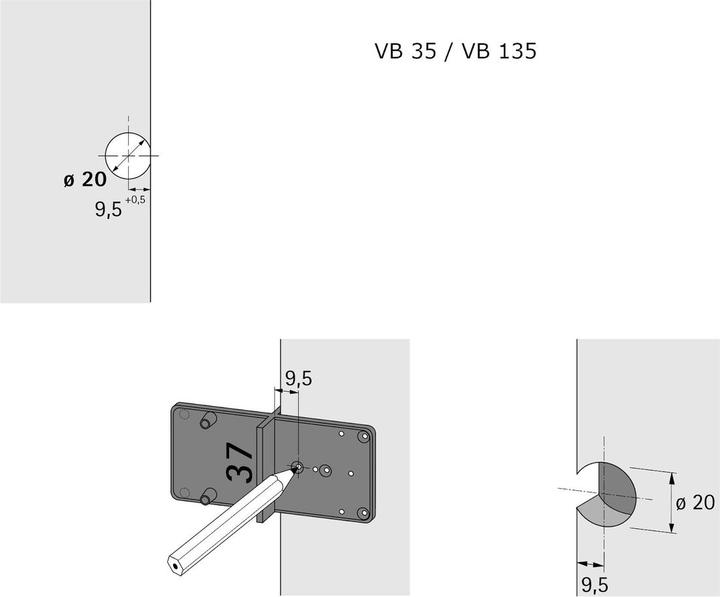

  • Holes with a diameter of 20 mm for connecting fittings VB 35 and VB 135

Technical details:

  • Material: Plastic
  • Color: Blue

Delivery includes:

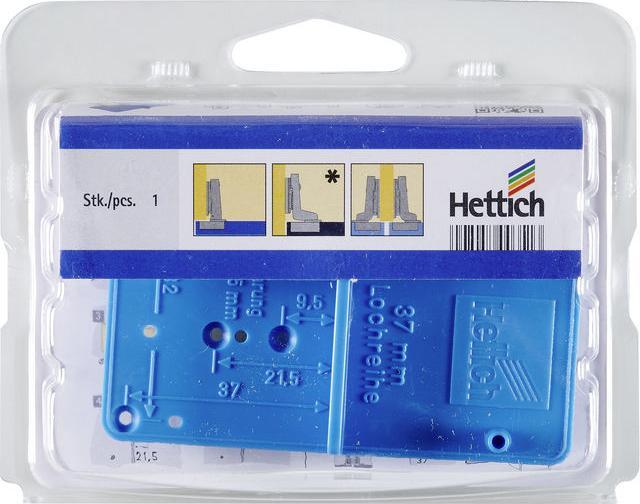

  • 1x MultiBlue marking template for cup hinges

Hettich - Innovations for every furniture world.

With numerous innovations and always new ideas, we have promoted trends that shape the mobility and multifunctionality of today's furniture concepts. Our technology for furniture makes a valuable contribution to this. In the future, we will continue to passionately research, develop intelligent functions, and bring the furniture of this world to life.

Key specifications

Exact colour description
Blue
Material
Plastic
Area of use
Outside

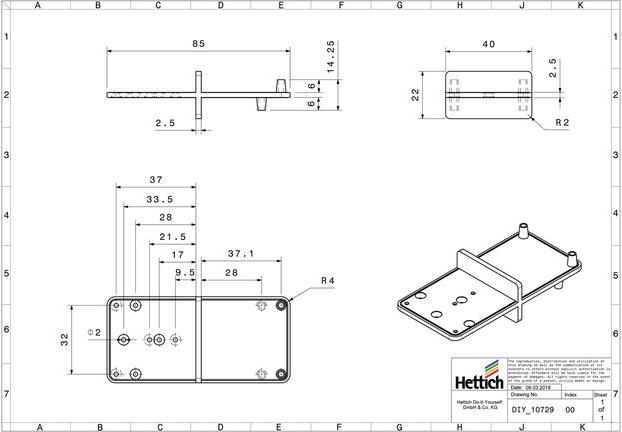

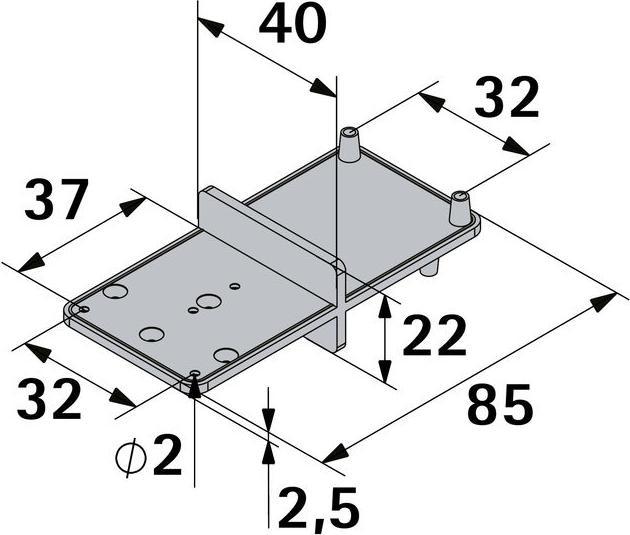

Length
85 mm
Width
40 mm

General information

Item number
31198474
Manufacturer
Hettich
Category
Wood connectors
Manufacturer No.
920669301
Release date
28.2.2023
Sales rank in Category Wood connectors
12 of 4439

Colour

Colour
Blue
Exact colour description
Blue

Material

Material group
Plastic
Material
Plastic

Wood connector properties

Connector type
Perforated plate
Area of use
Outside

Origin

Country of origin
Germany, Thailand

Voluntary climate contribution

CO₂ emissions
0.06 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
85 mm
Width
40 mm

Package dimensions

Length
14.60 cm
Width
9.20 cm
Height
1.50 cm
Weight
15 g

30-day right of return
24 Months Warranty (Bring-in)
