Product details

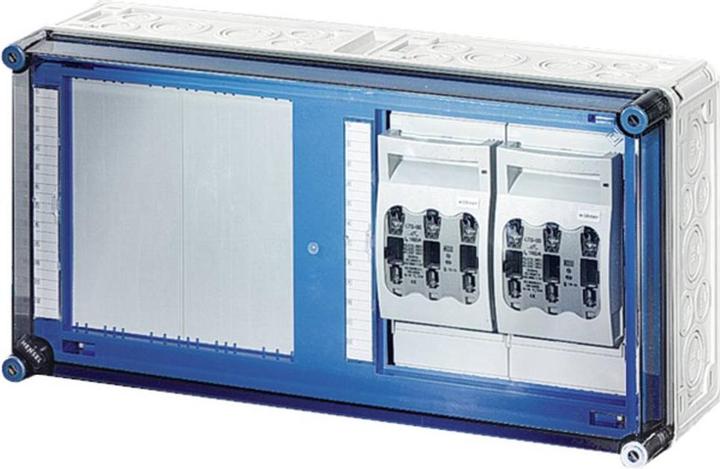

Hensel NH-fuse housing Mi 6427

Manufacturer: Hensel
Designation: NH-fuse housing
Type: Mi 6427
Features of the fuse switch disconnector housing: with fuse switch disconnector
Number of poles: 3
Rated operational current Ie: 125 A
Max. rated operating voltage Ue at AC: 800 V
Rated insulation voltage Ui: 690 V
Size of fuse links: NH00
With fuse monitoring: no

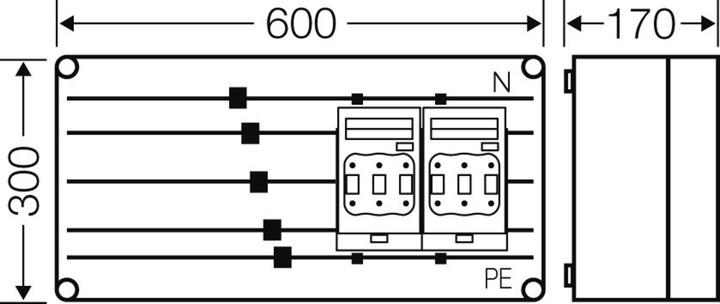

Enclosure width: 600 mm
Enclosure depth: 170 mm
Enclosure height: 300 mm
Protection class (IP): IP65

Hensel NH fuse enclosure Mi 6427: further details
Enclosure for the construction of energy switchgear combinations up to 630 A or as individual enclosure. Made of high-quality polycarbonate with protective insulation. Panel feed-throughs with large openings for electrical connection of the enclosures to each other. Cable entry on all enclosure walls via metric knockouts or mounting flanges. Enclosures for wall mounting also via external lugs or with mounting rails. Housing with fuse switch-disconnector NH 00, 3-pole, according to IEC 60947-3 on busbars. With supply terminals, PE and N terminals, and contact protection. Connection direction can be changed. Cover locks for tool actuation.

Key specifications

Protection type (IP code)
IP65
Width
600 mm
Height
300 mm

General information

Item number
20021277
Manufacturer
Hensel
Category
Wiring closet technology
Manufacturer No.
4012591657385
Release date
16.3.2022
External links
Manufacturer's site (de)

Material

Material group
Plastic
Material
Polycarbonate

Distribution cabinet technology Features

Nominal current
125 A
Protection type (IP code)
IP65
Nominal voltage
800 V
number of poles
3
Fuse size
NH00

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Width
600 mm
Height
300 mm
Depth
170 mm
