Hensel Mi 6426 bus-mounting fuse box

Ratings
BrandMore from Hensel
Delivered between Thu, 1.10. and Tue, 13.10.
8 pieces in stock at supplier
free shipping

Show all

Product details

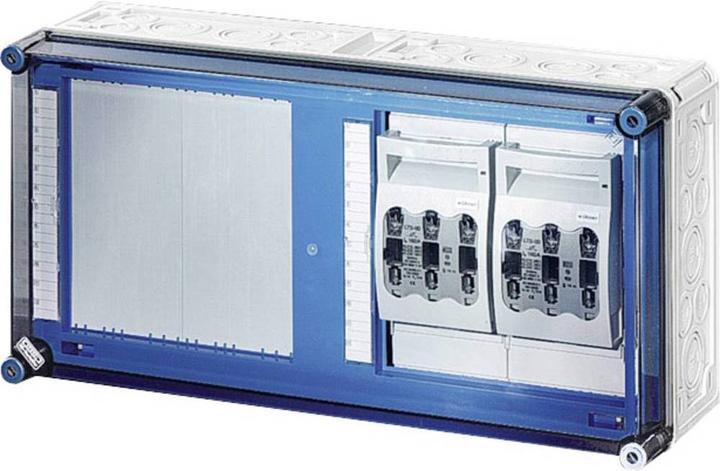

Hensel Fuse Enclosure Mi 6426

Manufacturer: Hensel
Designation: Fuse enclosure 2x3xNH00 250A 5p
Type: Mi 6426
Number of poles: 3
Rated operational current Ie: 125 A
Max. rated operational voltage Ue for AC: 800 V
Rated insulation voltage Ui: 690 V
Size of fuse inserts: NH00
With fuse monitoring: no
Enclosure width: 600 mm
Enclosure depth: 170 mm
Enclosure height: 300 mm
Protection class (IP): IP65

The Hensel Fuse Enclosure Mi 6426 is designed for the construction of energy switchgear combinations up to 630 A or as a standalone enclosure. It is made of high-quality, protection-insulated polycarbonate. Wall penetrations with large openings allow for the electrical connection of enclosures to each other. Cable entry is possible on all enclosure walls via metric pre-formed openings or mounting flanges. The enclosure can also be installed for wall mounting using external tabs or mounting rails. It is equipped with a NH 00, 3-pole load break switch according to IEC 60947-3 on busbars. Additionally, it features incoming terminals, PE and N terminals, as well as touch protection. The connection direction is adjustable, and the lid locks are designed for tool operation.

Key specifications

Distribution cabinet technology Type
Fuse box
Protection type (IP code)
IP65
Length
600 mm
Width
300 mm
Height
170 mm

General information

Item number
12970897
Manufacturer
Hensel
Category
Wiring closet technology
Manufacturer No.
2000658
Release date
22.3.2020

Colour

Colour
Grey
Exact colour description
Light grey (RAL 7035)

Material

Material group
Plastic
Material
Polycarbonate

Distribution cabinet technology Features

Distribution cabinet technology Type
Fuse box
Area of use
Inside
Nominal current
250 A
Protection type (IP code)
IP65
Nominal voltage
690 V
number of poles
3
Fuse size
NH00

Smart home features

Control type
Manual

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
1043.12 kg
Climate contribution
CHF 24.81

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
600 mm
Width
300 mm
Height
170 mm
Depth
170 mm

Package dimensions

Length
58 cm
Width
28 cm
Height
18 cm
Weight
9.09 kg
