Hensel Load switch housing

Hensel load switch housing Mi 7456

Manufacturer: Hensel
Designation: Load switch housing 160A 3p + PE + N
Type: Mi 7456

Design as main switch: Yes
Design as maintenance/repair switch: No
Design as safety switch: No
Design as emergency stop device: No
Design as reversing switch: No

Max. rated operational voltage Ue at AC: 500 V
Rated operational voltage: 500 V
Rated continuous current Iu: 160 A
Rated continuous current at AC-21, 400 V: 160 A
Rated operational power at AC-3, 400 V: 80 kW
Rated short-time withstand current Icw: 7 kA
Rated operational power at AC-23, 400 V: 80 kW
Breaking capacity at 400 V: 80 kW
Number of poles: 3

Motor drive optional: No
Motor drive integrated: No
Voltage release optional: No
Device design: Complete device in housing
Suitable for floor mounting: No
Suitable for front mounting 4-hole: No
Suitable for front mounting central: No
Suitable for distributor mounting: No
Suitable for intermediate mounting: No

Color of actuating element: Black
Design of actuating element: Long rotary handle
Lockable: Yes
Connection type main circuit: Clamping bracket
Protection class (IP), front side: IP65

Hensel load switch enclosure Mi 7456: Further details

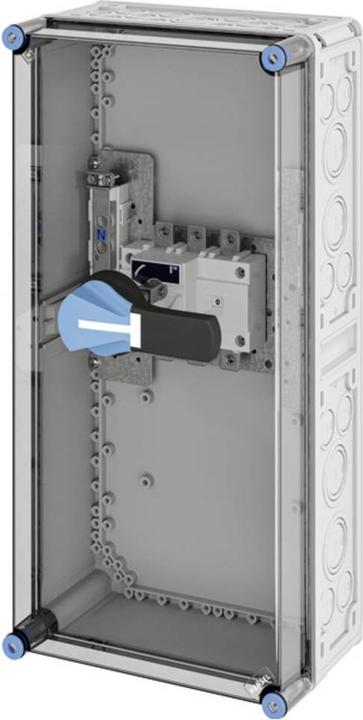

Enclosure for the construction of energy switchgear combinations up to 630 A or as a single enclosure. Made of high-quality polycarbonate with protective insulation. Panel feed-throughs with large openings for electrical connection of the enclosures to each other. Cable entry on all enclosure walls via metric knockouts or mounting flanges. Enclosures for wall mounting also via external lugs or with mounting rails. Enclosure with switch-disconnector 160 A, 3-pole, according to IEC 60947-3. With PE and N terminals for copper conductors. Handle of switch disconnector lockable. Cover locks for tool actuation.
