Hensel Load break housing

was CHF383.95
Ratings
BrandMore from Hensel
Delivered between Thu, 30.4. and Fri, 1.5.
5 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

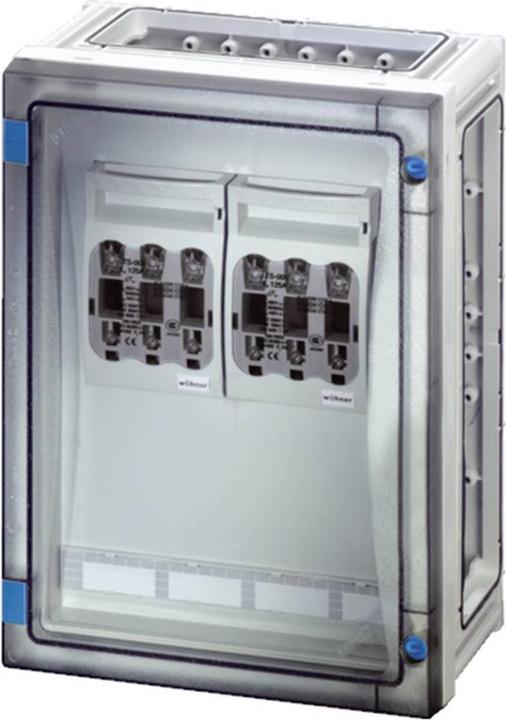

Hensel load break case FP 4212

Manufacturer: Hensel
Designation: Load break case 2xNH 00C, 3p 125A
Type: FP 4212

Features of the fuse load break case:

  • With fuse switch disconnector
  • Number of poles: 3
  • Rated operational current Ie: 125 A
  • Max. rated operating voltage Ue at AC: 800 V
  • Rated insulation voltage Ui: 690 V
  • Size of fuse links: NH000
  • With fuse monitoring: no

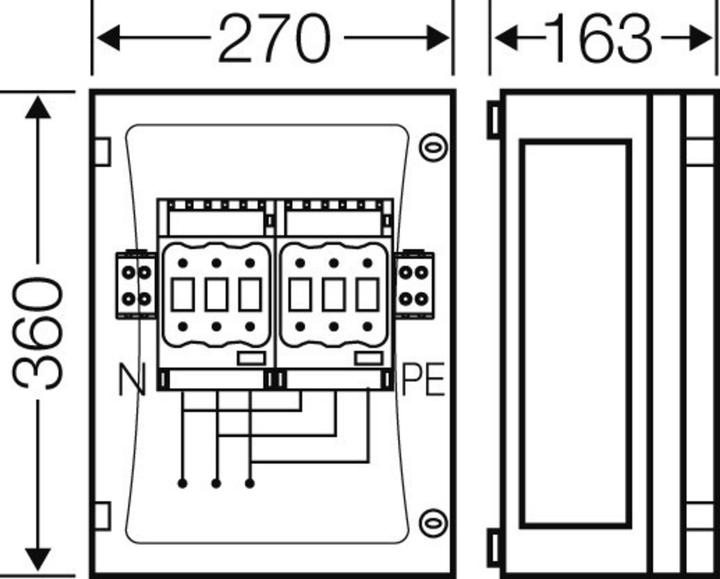

  • Enclosure width: 270 mm
  • Enclosure depth: 163 mm
  • Enclosure height: 360 mm
  • Protection class (IP): IP66

Hensel load-break enclosure FP 4212: further details
Enclosure with door for the construction of installation distribution boards up to 250 A for operation by laymen according to IEC 61439-3. Open enclosure walls for combination or as single enclosure with closing plates. Made of high-quality polycarbonate, with protective insulation. Fast enclosure connection by means of plug-in connectors and integrated seals. Large panel feedthroughs for electrical connection of the enclosures to each other. Cable entry via flanges. Wall mounting directly on the enclosure, via external brackets or with mounting rails. Enclosure with fuse switch disconnectors NH 00C, 3-pole, according to IEC 60947-3 on mounting plate. With supply line terminals, PE and N terminals. With bridge to divide the supply line. Connection space changeable. With transparent door and door lock with tool actuation.

Key specifications

Protection type (IP code)
IP65, IP66
Width
270 mm
Height
360 mm

General information

Item number
17841948
Manufacturer
Hensel
Category
Wiring closet technology
Manufacturer no.
4012591105480
Release date
13.12.2021
External links
Manufacturer's site (de)

Colour

Colour
Transparent

Material

Material group
Plastic

Distribution cabinet technology Features

Nominal current
125 A
Protection type (IP code)
IP65, IP66
Nominal voltage
800 V
number of poles
3
Fuse size
NH00

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Width
270 mm
Height
360 mm
Depth
163 mm

30-day right of return
24 Months Warranty (Bring-in)
