Hensel KV 90 automatic housing

Hensel KV 90 Circuit Breaker Enclosure KV 9224 M

Manufacturer: Hensel
Designation: KV 90 Circuit Breaker Enclosure 24TE IP65 Metric Pre-formed
Type: KV 9224 M
Mounting Type: Surface-mounted
Number of Rows: 2
Width in Division Units: 12
Type of Cover: Door
Cover Design: Closed
Transparent Cover/Door: Yes
With Lock: No
Material of the Enclosure: Plastic
Installation Depth: 93 mm
Internal Depth: 114 mm
DIN Rail: Yes
With Mounting Plate: No
Mounting Option: Yes
EMC Version: No
Color: Gray
RAL Number: 7035
Protection Class (IP): IP65

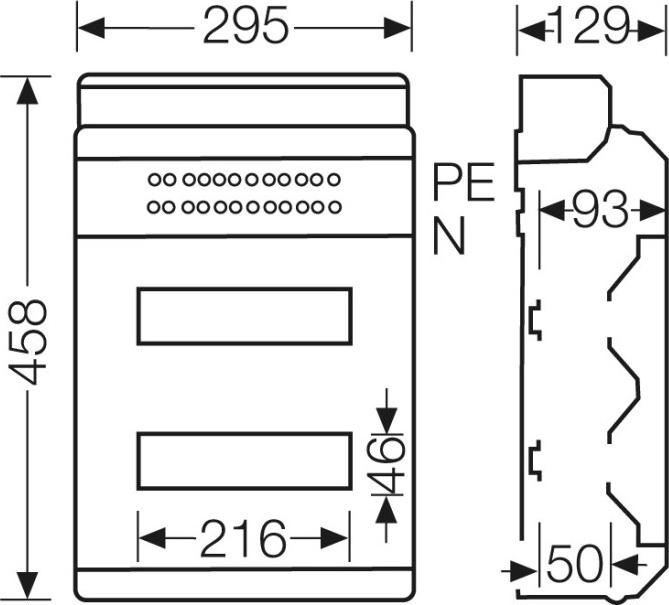

Height: 458 mm
Width: 295 mm
Depth: 129 mm

Hensel KV 90 Circuit Breaker Enclosure KV 9224 M: Additional Details
Small distribution board made of high-quality thermoplastic (polystyrene). Suitable for surface-mounted applications in buildings or protected outdoor installations. Circuit breaker enclosure with 24 division units for the installation of devices with snap-on mounting on DIN rail. Cable entry is provided through metric pre-formed entries. Features a transparent door and cable entry cover, integrated accessory compartment, and cover strip for the device cutout. Protection class IP 65.
