Hensel Fuse box

Ratings
BrandMore from Hensel
Delivered between Fri, 24.4. and Mon, 27.4.
Only 1 piece in stock at third-party supplier
Supplied by
Conrad CH
free shipping

Product details

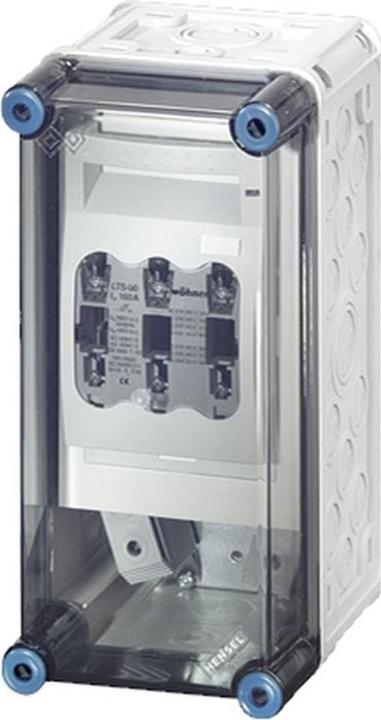

Hensel fuse housing Mi 5150
Manufacturer: Hensel
Designation: Fuse housing 1xNH00 3p. 160A+PE+N
Type: Mi 5150

Features of the fuse switch disconnector housing:

  • With fuse switch disconnector
  • Number of poles: 3
  • Rated operational current Ie: 125 A
  • Max. rated operating voltage Ue at AC: 800 V
  • Rated insulation voltage Ui: 690 V
  • Size of fuse links: NH00
  • With fuse monitoring: No

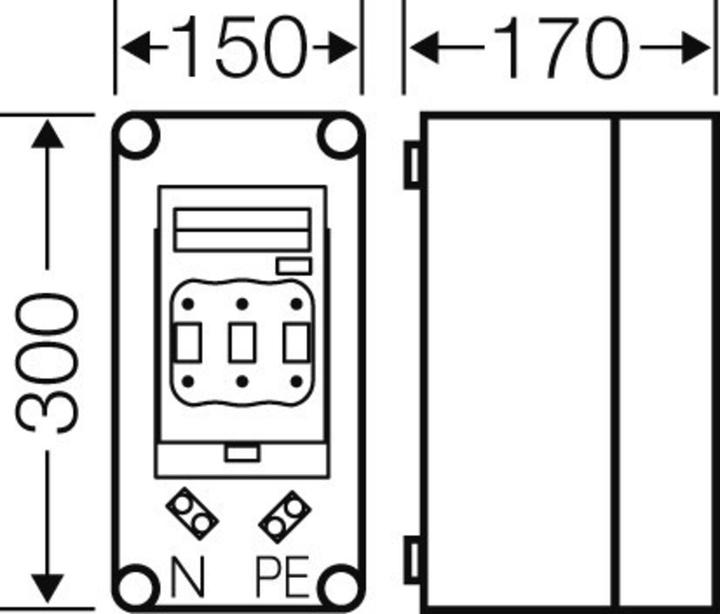

  • Enclosure width: 150 mm
  • Enclosure depth: 170 mm
  • Enclosure height: 300 mm
  • Protection class (IP): IP65

Hensel fuse enclosure Mi 5150: further details
Enclosure for the construction of energy switchgear combinations up to 630 A or as a single enclosure. Made of high-quality polycarbonate with protective insulation. Panel feed-throughs with large openings for electrical connection of the enclosures to each other. Cable entry on all enclosure walls via metric knockouts or mounting flanges. Enclosures for wall mounting also via external lugs or with mounting rails. Housing with fuse switch-disconnector NH 00, 3-pole, according to IEC 60947-3 on mounting plate. With PE and N terminals for copper conductors. Cover locks for tool actuation.

Key specifications

Distribution cabinet technology Type
Fuse box
Protection type (IP code)
IP65
Width
150 mm
Height
300 mm

General information

Item number
20021147
Manufacturer
Hensel
Category
Wiring closet technology
Manufacturer no.
4012591651888
Release date
16.3.2022
External links
Manufacturer's site (de)

Material

Material group
Plastic
Material
Polycarbonate

Distribution cabinet technology Features

Distribution cabinet technology Type
Fuse box
Protection type (IP code)
IP65
Nominal voltage
800 V
number of poles
3
Fuse size
NH00

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Width
150 mm
Height
300 mm
Depth
170 mm
