Hensel ENYSTAR Circuit Breaker Enclosure FP 1318

Manufacturer: Hensel
Designation: ENYSTAR Circuit Breaker Enclosure
Division Units: 36
Type: FP 1318
Mounting Type: Surface-mounted
Number of Rows: 3
Width in Division Units: 12
Cover Type: Door
Cover Design: Closed
Transparent Cover/Door: Yes
Material of the Enclosure: Plastic

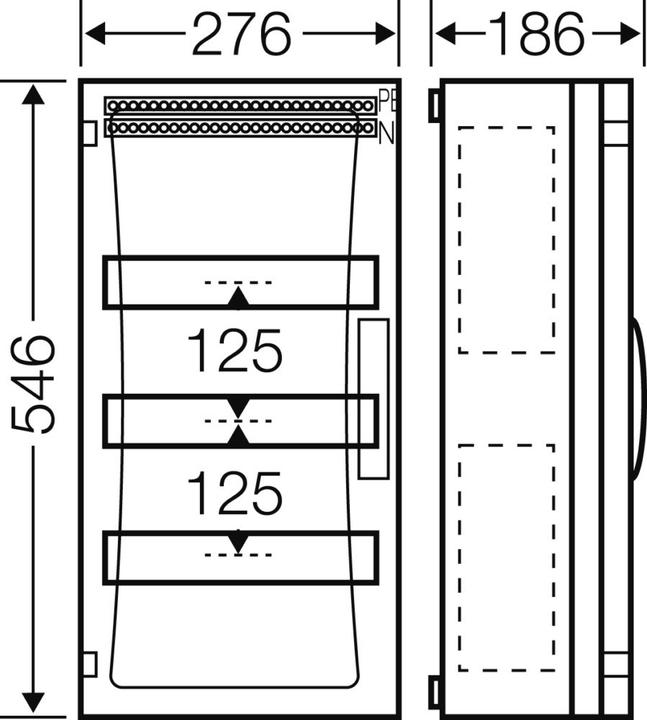

Height: 546 mm
Width: 276 mm
Depth: 186 mm
Installation Depth: 93 mm
Internal Depth: 136 mm
DIN Rail: Yes
With Mounting Plate: No
Mounting Option: Yes
EMC Version: No
Color: Gray
RAL Number: 7035
Protection Class (IP): IP65
With Lock: No

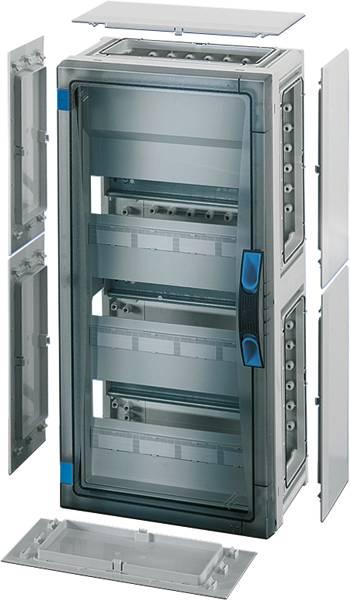

The Hensel ENYSTAR Circuit Breaker Enclosure FP 1318 is a door enclosure designed for the construction of installation distribution boards up to 250 A, suitable for use by non-professionals according to IEC 61439-3. It features open enclosure walls for combination or as a standalone enclosure with closure plates. The enclosure is made of high-quality polycarbonate and is protection-insulated.

The connection of the enclosures is quick and easy through connectors and integrated seals. Large wall penetrations allow for the electrical connection of the enclosures to each other, while cable entry is done via flanges. Wall mounting can be done directly on the enclosure, via external brackets, or with mounting rails.

The circuit breaker enclosure offers 36 division units for the installation of modular devices according to DIN 43880. It is equipped with PE and N terminals for copper conductors, with N being separable for different potentials. Cover strips for sealing unused device cutouts and labeling strips for circuit identification are also included. The transparent door features a sealable door lock with manual operation and is supplied with a closure plate set.
