Hensel Busbar housing

Ratings
BrandMore from Hensel
Delivered between Wed, 20.5. and Thu, 21.5.
Only 2 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

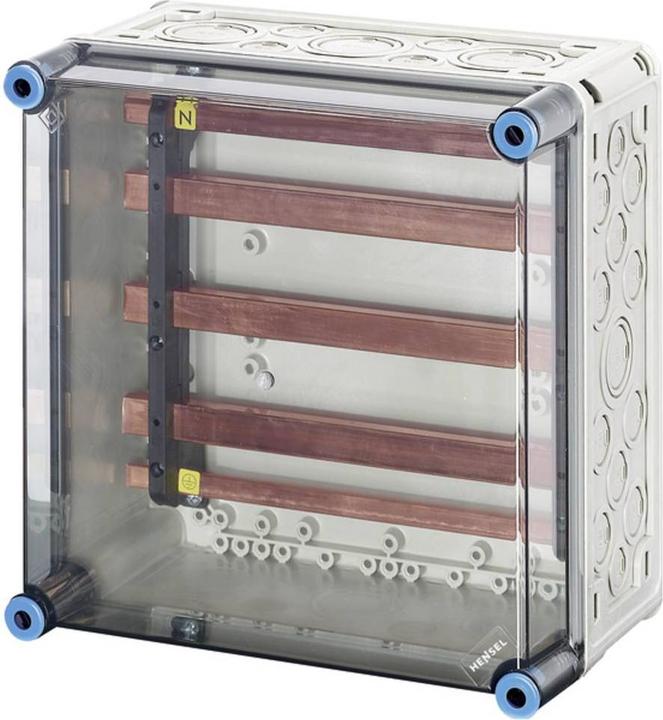

Hensel busbar enclosure Mi 6255

Manufacturer: Hensel
Designation: Busbar enclosure 400A

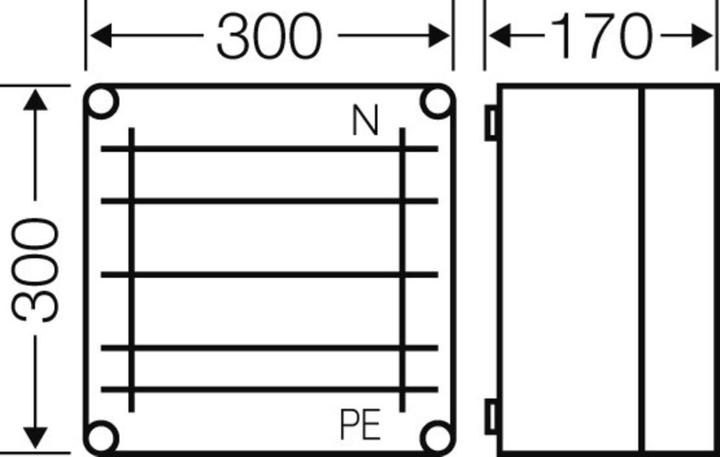

Dimensions: 300 x 300 x 170 mm
Type: Mi 6255
Equipped with busbar: Yes
Rated current busbar system: 400 A
Material of enclosure: Plastic
Height: 300 mm
Width: 300 mm
Depth: 170 mm
Mounting option: Yes
Mounting type: Surface-mounted
With transparent cover: Yes
Short-circuit withstand rating (Icw): 30 kA
Number of poles: 5
Degree of protection (IP): IP65

Further details:
Enclosure for the construction of energy switchgear combinations up to 630 A or as an individual enclosure. Made of high-quality polycarbonate with protective insulation. Panel feed-throughs with large openings for electrical connection of the enclosures to each other. Cable entry on all enclosure walls via metric knockouts or mounting flanges. Enclosures for wall mounting also via external lugs or with mounting rails. Enclosures with busbars, without device, without terminals. Cover locks for tool actuation.
EAN: 4012591657859.

Key specifications

Protection type (IP code)
IP65
Length
170 mm
Width
300 mm
Height
300 mm

General information

Item number
20021280
Manufacturer
Hensel
Category
Wiring closet technology
Manufacturer No.
4012591657859
Release date
16.3.2022
External links
Manufacturer's site (de)

Colour

Colour
Grey
Exact colour description
RAL-7032

Material

Material group
Plastic
Material
Plastic

Distribution cabinet technology Features

Nominal current
400 A
Protection type (IP code)
IP65
number of poles
5

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
170 mm
Width
300 mm
Height
300 mm
Depth
170 mm

30-day right of return
24 Months Warranty (Bring-in)
