Helios ZEB EC central ventilation box

Helios Fans Central Ventilation Box ZEB EC

Manufacturer: Helios Fans
Designation: Central Ventilation Box
Type: ZEB EC
Heat recovery: none
Type of ventilation: central supply and exhaust air
Rated current: 0.58 A
Air connection diameter: 125 mm
With water air heater: no
With additional heating: no
Height: 280 mm
Width: 388 mm
Depth: 388 mm
Weight: 5.9 kg

Further details:

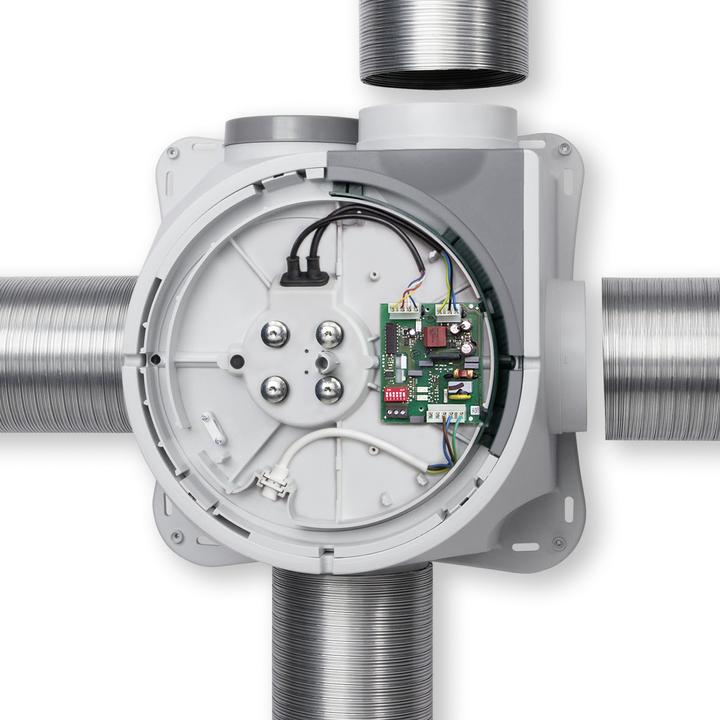

Central ventilation box in a compact design, featuring four exhaust air intake ducts and one air outlet duct. Sturdy housing made of impact-resistant plastic, light gray. The three intake and the air outlet ducts are designed for pipes with diameters of NW 100 and 125 (4 reducers included in the delivery). One intake duct is suitable for pipes with diameters of NW 100, 125, and 160 (1 asymmetric reducer from NW 160 to NW 125 included in the delivery). Fan operation in three stages possible via operating switch DSZ (accessory). For individual performance adjustment, nine speeds are available through DIP switches on the drive electronics. Low-noise radial impeller made of steel in aerodynamically optimized spiral. Inlet through nozzle. Energy-saving electronically commutated DC external rotor motor with ball bearing for continuous operation. High efficiency even in regulated operation. Maintenance-free and interference-free.
EAN: 4010184014577.
