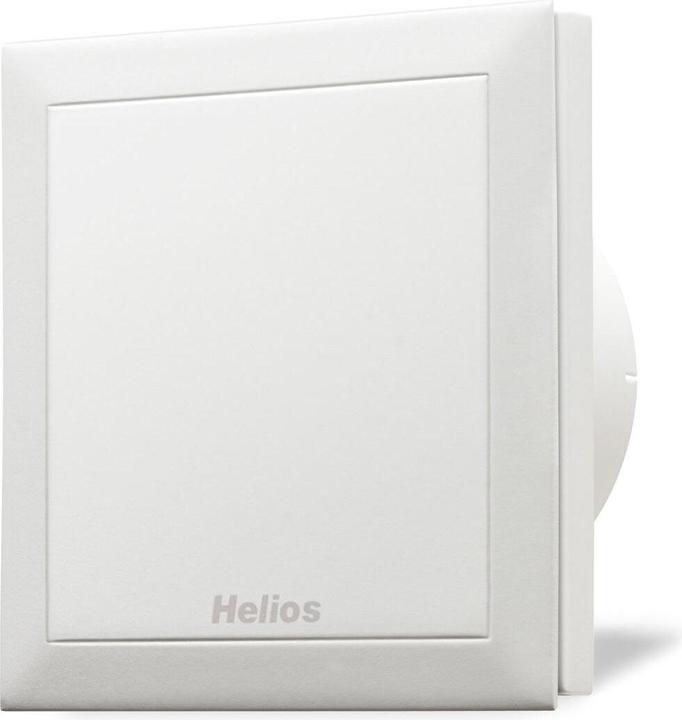

Helios Small room fan

Helios Ventilatoren small room fan M1/150 F

Manufacturer: Helios Ventilatoren
Designation: Small room fan
Type: M1/150 F
Mains frequency: 50 Hz
Rated voltage: 230 V
Mounting type: Wall/pipe mounting
Material of housing: Plastic
Color: White
Air flow rate: 260 m³/h
Protection class (IP): IP45
Nominal size: 150 mm
Composition: Other
Design: Axial
Direction: Exhaust

The small room fan MiniVent M1/150 features two performance levels (260/220 m³/h), an energy-saving EC motor, and humidity curve control. The run-on time can be set to approximately 6, 12, 18, or 24 minutes, with the time function adjustable at either the high or low power level. It is also possible to activate the time functions on both power levels. Each stage can be set to a speed range from minimum to maximum via a potentiometer. The switch-on threshold for the dehumidification function is adjustable from 40% to 95% using another potentiometer.

With the 8-pole DIP switch, a variety of adjustable functions are available, including the Hugrostat function, step assignment of time functions, and dehumidification. Three different dehumidification functions can be set:

1. Single-stage dehumidification, with a selectable power stage.
2. Two-stage dehumidification, starting at low power stage, automatically switching to high power as humidity increases.
3. Stepless dehumidification, where the fan speed varies based on room humidity.

With its excellent design, the MiniVent M1 blends harmoniously into any environment, even in sophisticatedly designed rooms. The closed, shapely facade completely conceals the fan opening. It comes equipped with a tightly closing return air damper as standard. Thanks to the new ultraSilence technology, the noise level is just 35 dB(A) at 220 m³/h volume flow. This fan is universally applicable for the ventilation of bathrooms, WCs, and other rooms.
