Helios KWL EC 60 Pro

Helios Fans Heat Recovery Unit KWL EC 60 Pro

Manufacturer: Helios Fans
Designation: Decentralized heat recovery unit, 60 m³/h
Type: KWL EC 60 Pro
Heat recovery via: other
Type of ventilation: decentralized supply and exhaust air
Heat source: exhaust air
Heat recovery efficiency: 75%
Nominal current: 0.06 A
With hot water preparation: no
With heating: no
Solar integration: no
With remote control: yes
With water air heater: no
With additional heating: no
Height: 370 mm
Width: 370 mm
Depth: 350 mm
Weight: 6.5 kg

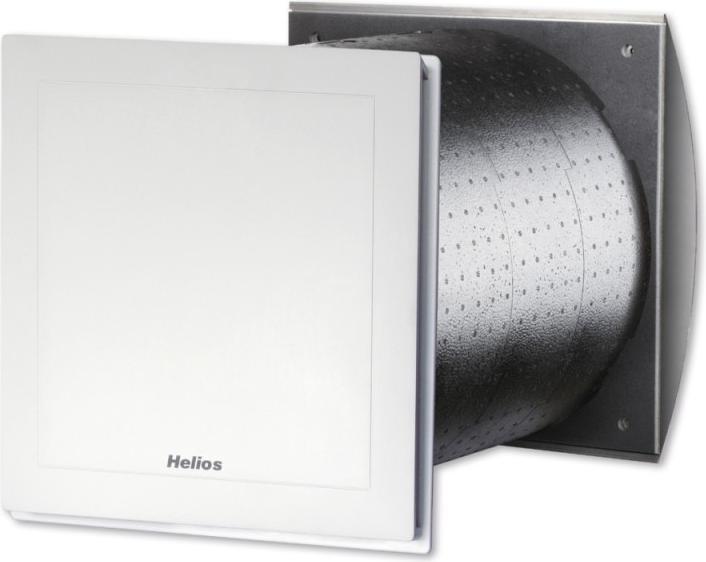

The Helios Fans Heat Recovery Unit KWL EC 60 Pro is a built-in device for the ventilation of individual rooms. It features an aluminum plate heat exchanger with an efficiency of over 70%. State-of-the-art EC motors ensure extremely low energy consumption. The unit has 4 performance levels as well as exhaust and supply air operation, and an interior facade made of high-quality plastic.

The fan housing is made of EPP and contains two highly efficient, energy-saving DC EC fans. Two electric stainless steel external shut-off dampers with fly protection grids seal off the unit airtight during downtime. In the event of a power interruption, such as a blackout, the dampers automatically open.

A large aluminum plate heat exchanger with an efficiency of over 70% ensures efficient heat recovery. Two efficient air filters made of electrostatic material of class G4 in the supply and exhaust air flow guarantee optimal air purity. A pollen filter F7 can be optionally installed on the supply air side. The condensate is directly drained outside through the outer cover, including a drip tray.

Performance control is managed via the included control element KWL BCU, which offers a weekly timer and extensive functions.
