Helios HELI WSG 50/30 Weather protection grille rectangular anodised aluminium

Helios Ventilators Weather Protection Grille WSG 50/30

Manufacturer: Helios Ventilators
Designation: Weather protection grille aluminum natural anodized
Type: WSG 50/30
Material: Aluminum
Nominal width of duct: 500 mm
Nominal height of duct: 300 mm
Front width: 570 mm
Front height: 370 mm
Installation depth: 60 mm
With mesh wire: no
With insect screen: no
With pressure relief flap, blowing out: no
With pressure relief flap, sucking in: no
With counter-rotating flap valve: no
With co-rotating flap valve: no
With installation frame: no
Lockable: no
Motor controlled: no
Color: Aluminum

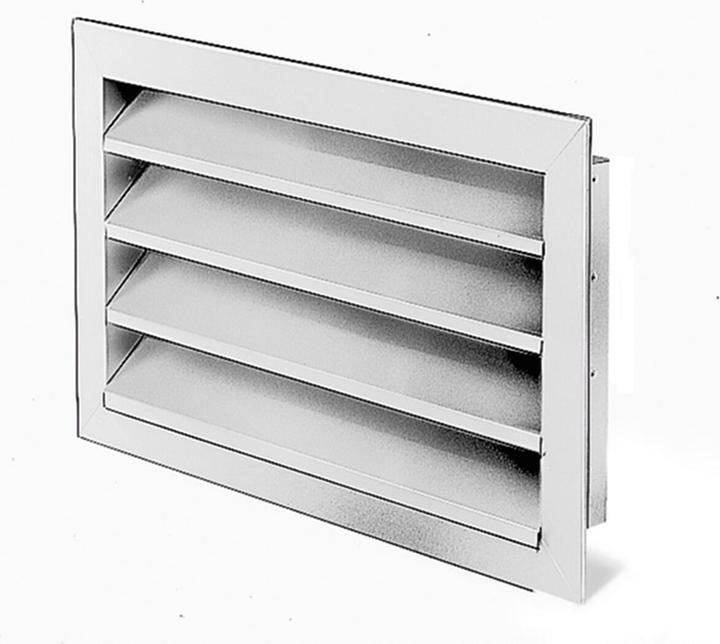

The weather protection grille WSG 50/30 is designed to cover ventilation openings on facades to prevent the ingress of rainwater, snow, and animals. It is inserted into the cross-section of the duct. The stable construction is made of extruded aluminum profiles, anodized in natural color. Fixed slats with a spacing of 65 mm are equipped with a mesh screen made of galvanized steel wire behind them, with a mesh size of 16 mm.
EAN: 4010184001119.
