Helios HELI ELS-GUB flush-mounted housing with fire protection shut-off damper
More than 10 items in stock at supplier
Product details
Helios Fans UP Housing ELSGUB
Manufacturer: Helios Fans
Designation: UP Housing with Fire Protection
Type: ELSGUB
Further Details:

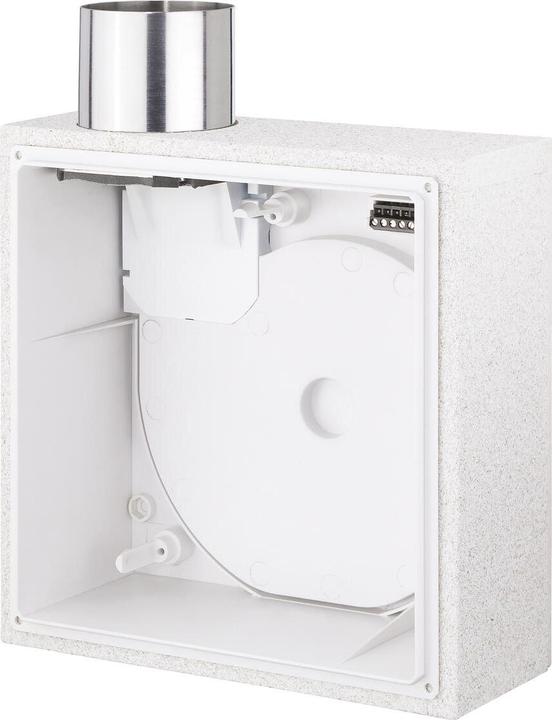

Flush-mounted housing with fire protection casing K 90, metal exhaust nozzle with automatic backdraft damper and shut-off upon melting solder activation. Exhaust nozzle can be positioned sideways, upwards (as supplied), and is rotatable to the left or right. Detachable plug connection for electrical connection. Reusable flap cover. Connection DN 80 mm.
Application Area:
For ventilation of kitchens, bathrooms, or WCs. Flush installation in walls, ceilings, and K 90 qualified ventilation ducts. Connection of 1 or 2 devices per floor up to 20 full stories is possible. The backdraft damper in fire protection housings also generally meets the requirements of a cold smoke shut-off damper. For residential kitchens, a fan unit with 100 m³/h is recommended.
EAN: 4010184081128.
Suitable for pipe diameter | 80 mm |
Item number | 32110482 |
Manufacturer | Helios |
Category | Ventilation fan |
Manufacturer no. | 8112 |
Release date | 16.11.2022 |
Colour | White |
Exact colour description | White |
Material | Other colour |
Suitable for pipe diameter | 80 mm |
Power supply | Without external power source |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 9.50 cm |
Width | 26.20 cm |
Height | 26.20 cm |
Length | 33.70 cm |
Width | 27.40 cm |
Height | 13 cm |
Weight | 2.51 kg |
