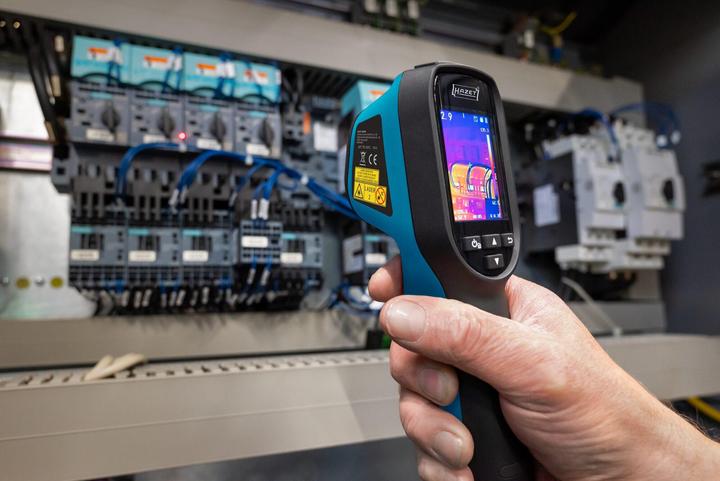

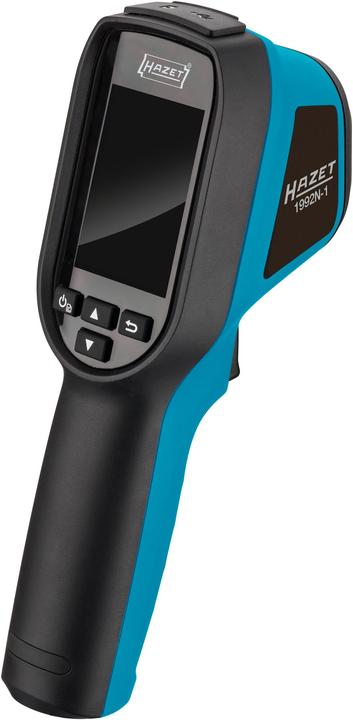

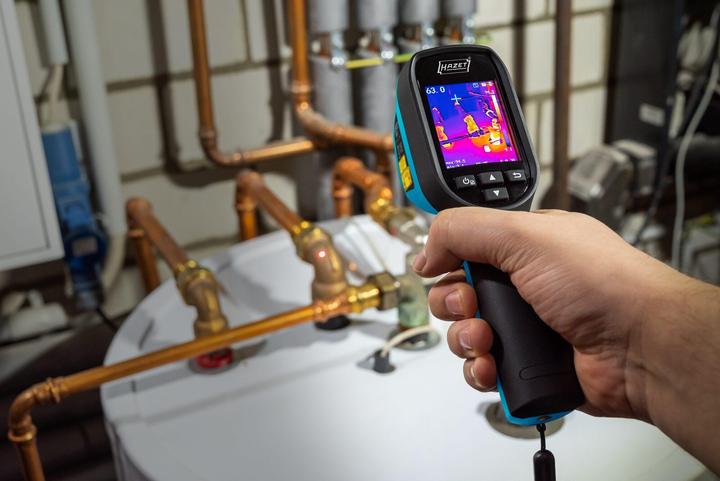

The HAZET thermal imaging camera 1992N-1 is a versatile diagnostic tool designed for various applications in building diagnostics, electrical installation, as well as in plumbing, climate, and heating technology. It allows for precise inspection of the engine compartment, braking system, and cooling and heating systems. With a temperature measurement range of -20 °C to 550 °C and an accuracy of up to ±2 °C, this camera offers reliable performance. The thermal resolution of 160 x 120 pixels and the additional visual camera with 640 x 480 pixels enable comprehensive analysis. The camera is equipped with a 2.4-inch LCD screen that provides a refresh rate of 25 Hz. Thanks to the integrated battery with a runtime of up to 8 hours, the camera is ideal for mobile use. The HAZET thermal imaging camera 1992N-1 is therefore an indispensable tool for professionals who need to perform precise diagnostics.
Image resolution | 160 x 120 pixels |
Temperature measuring range min. | -20 °C |
Temperature measuring range max. | 550 °C |
Thermal imaging camera type | Hand-held thermal imaging camera |
Item number | 49047845 |
Manufacturer | HAZET |
Category | Thermal imaging cameras |
Manufacturer no. | 1992N-1 |
Release date | 3.9.2024 |
Sales rank in Category Thermal imaging cameras | 14 of 273 |
Colour | Blue |
Exact colour description | Blue/Black |
Thermal imaging camera type | Hand-held thermal imaging camera |
Temperature measuring range min. | -20 °C |
Temperature measuring range max. | 550 °C |
Measurement accuracy | 2 °C |
Thermal sensitivity (NETD) | 50 mK |
Horizontal field of view | 50° |
Vertical field of view | 50° |
Focus type | Manual focus |
Refresh rate | 25 Hz |
Image sensor resolution | 9216 Pixels |
Image resolution | 160 x 120 pixels |
Interfaces / communication module | USB |
USB connector type | USB-C |
Functionalities | Photograph, Thermography |
Protection type (IP code) | IP54 |
Power supply | USB power delivery |
Battery type | Li-ion |
Capacity | 3.35 Ah |
Battery voltage | 3.70 V |
Battery life | 8 h |
Charging time | 10800 s |
Number of batteries | 1 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1992N-1, Micro SD card, Wrist strap |
Length | 11.70 cm |
Width | 5.90 cm |
Height | 19.60 cm |
Weight | 290 g |
Length | 25.10 cm |
Width | 15.30 cm |
Height | 9.70 cm |
Weight | 610 g |
