Hazet Hose reel 9040N-10

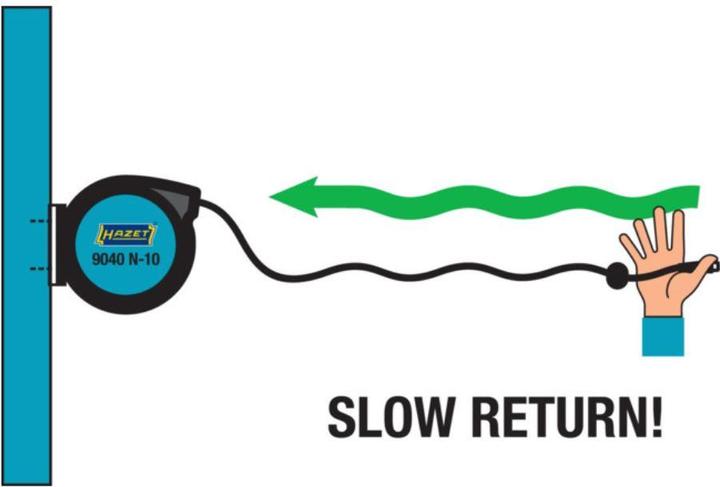

Application: The automatic hose reel ensures order in the workshop, prevents hoses from lying around, and reduces the risk of accidents. The hose can be stopped at any point with the "stop at any position" function, allowing for neat winding thanks to automatic guidance. It features a braked winding mechanism to avoid further accidents.

Inner diameter of the hose: 10 mm. Suitable for compressed air or water.

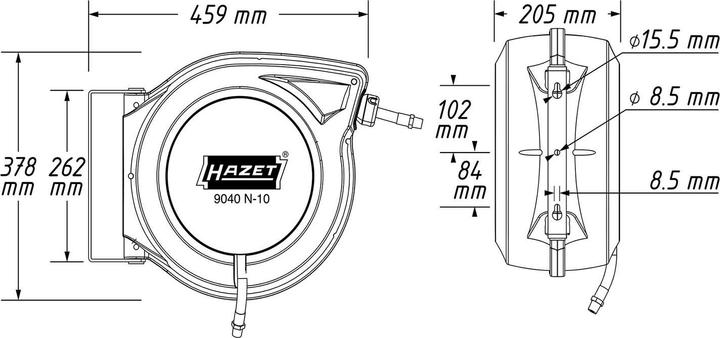

Dimensions: 459 x 378 x 205 mm. Packed dimensions: 465 x 400 x 220 mm.

The hybrid polymer hose is black and has a connection length of 0.9 m. An integrated drilling template is included for mounting on cardboard packaging. The thread is BSPT and meets all relevant requirements defined in the European Machinery Directive 2006/42/EC. It can optionally be used with the HAZET safety coupling.

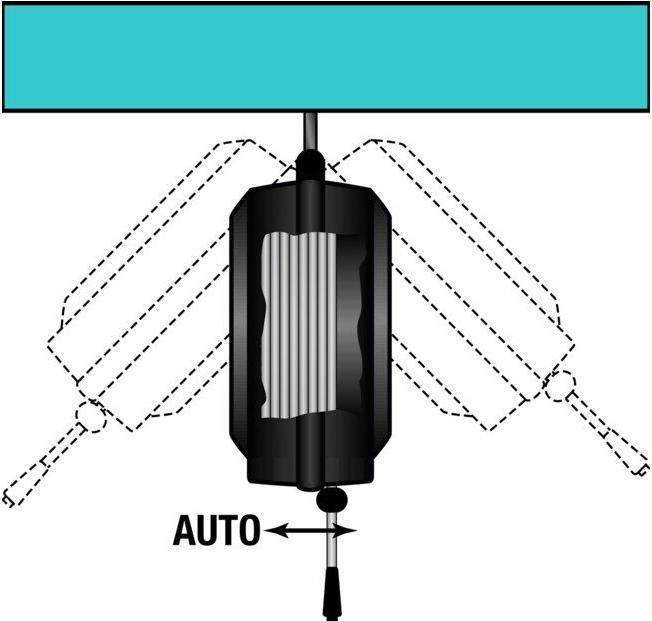

The closed special plastic housing comes with a swivel metal mounting bracket designed for separate installation at the workplace. The mounting bracket hole spacing is 186 mm.

Air connection inlet: external thread 16.41 mm (3/8"). Air connection outlet: external thread 16.41 mm (3/8"). Hose length: 15 m. Max. operating pressure: 20 bar. Net weight: 6.45 kg. Temperature range: -40°C to 60°C.
