Hager VA48NW

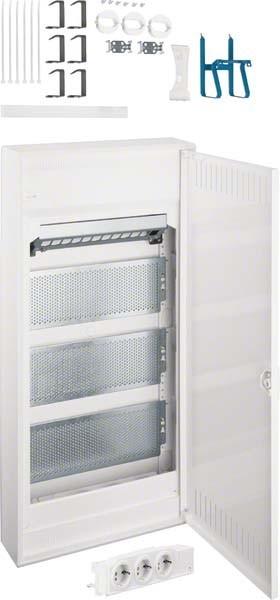

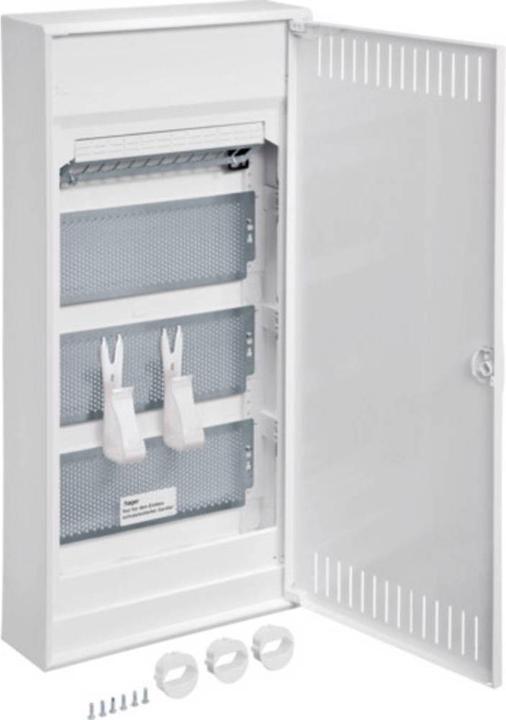

Surface-mounted small distribution board made of plastic, according to DIN VDE 60670-24 and DIN 43871, suitable for use in residential buildings according to DIN 18015 and for the installation of VDI components with protective insulation. Protection class IP30, protection class II with protective insulation. Consisting of a plastic base plate with standard cable catch, a ventilation door made of powder-coated and baked sheet steel, front-flush with internal hand-operated hinges. The door features a lock with a flush handle recess and an automatic retracting handle, with the door hinge positioned on the right or left. The upper connection compartment includes a patch panel and DIN rail insulated, snapped on to accommodate different communication modules, with two screw fastenings provided on the patch panel for the required functional equipotential bonding according to DIN EN 50310. There is a labelling option with an enclosed labelling strip for port labelling. Pre-assembled perforated mounting plates made of galvanised sheet steel with 3.2 mm perforation are included.
