Hager Ring transformer

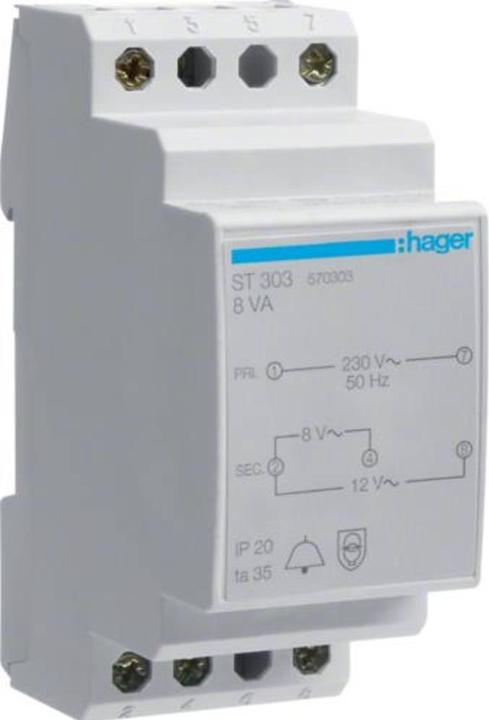

Hager Doorbell Transformer ST303

Manufacturer: Hager
Designation: Doorbell Transformer 8V/1.0A-12V/0.67A
Type: ST303
Primary Voltage: 230 V
Secondary Voltage 1: 8 V
Secondary Voltage 2: 12 V
Secondary Current 1: 1 A
Secondary Current 2: 0.67 A
Max. Output Power: 8 W
Max. Output Current: 1 A
Max. Power Loss: 8 W
Type of Transformer: Standard Doorbell Transformer
Surface Mounting: Yes
Flush Mounting: No
Suitable for Rail Installation: Yes
Length: 111 mm
Width: 35 mm
Height: 65 mm
Width in Division Units: 2
Short Circuit Protection: Yes
Temperature Protection: Yes
With On/Off Switch: No

The doorbell transformer 230V / 8V and 12V has a power rating of 8 VA and is equipped with protection against short circuits or overloads via an integrated thermal switch on the primary side.
EAN: 3250615703033.
