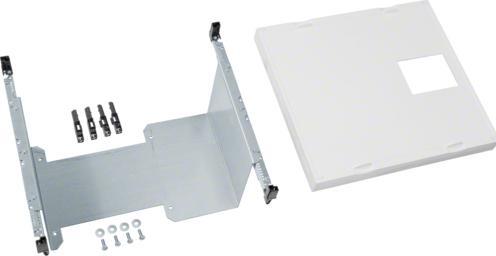

Hager Module

Hager Module universN UK32V1
Manufacturer: Hager
Designation: Module universN for changeover switch 630A
Type: UK32V1
Height: 450 mm
Width: 500 mm
Depth: 135 mm
With cover: Yes
Plastic cover plate: Yes
Suitable for switch-disconnectors: No
Equipped with switch-disconnector: No
Suitable for circuit-breakers: No
Equipped with circuit-breaker: No
Suitable for zero-voltage switch: Yes
Equipped with zero-voltage switch: No
Suitable for changeover switch: Yes
Equipped with changeover switch: No
Rated operating current: 630 A
Number of switches: 1
With distribution terminals: No

Hager universN UK32V1 module: more details
Module, universN, 450x500mm, for changeover switch with motor-drive unit 630A. Univers N switch-disconnector module for setting up low-voltage distribution as a switchgear combination up to 1600A, rated voltage 3AC 690 V /50Hz. Lead-sealable contact hazard protection covers as standard, reinforced using the internal gas pressure method with four quick-locking bolts each. VDE mark approval in accordance with DIN EN 61 439 -1 and -2 and -3 (VDE 0660 Part 600 -1 and -2 and -3), dimensional standard: DIN 43 870, EAN: 3250616211100.
