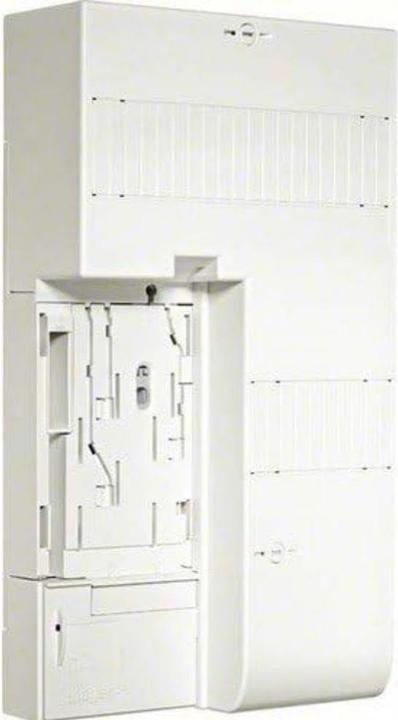

Hager KU33BHE

Hager eHZ Adapter KU33BHE

Manufacturer: Hager
Designation: eHZ Adapter BKE-AZ3,5+10PLE
Type: KU33BHE
Wiring included: no
Design: electronic household meter (eHZ)
Number of meter slots: 1
Main switch rated current: 63 A
Width: 195 mm
Height: 355 mm
Width in modular units: 1
Cover design: closed with pre-embossing
Connection space: 300 mm
With mounting plate: no
Color: white
RAL number: 9010
Protection class (IP): other

Hager eHZ Adapter KU33BHE: additional details
BKE-AZ 3-phase, universZ, with RfZ, 5+10 module units, packaging unit = 1.
Mounting and contact device BKE-AZ, BKE-AZ1 or BKE-AZ3 with VDE mark according to DIN V VDE V 0603-5 for accommodating the electronic household meter (eHZ) according to VDN specifications V 1.03, whose touch protection cover for the terminal area is sealed by the meter, with the possibility of expansion with DIN rail for 8 or 15 PLE to accommodate installation devices (max. width 10 PLE) according to DIN 43880 size 1 (rail-mounted devices on DIN rail), without disassembly of the eHZ.

BKE rated connection capacity per main terminal for copper conductors: 4-25 mm², solid or stranded with end sleeves. BKE terminal board dimensions for connection cables according to DIN 43857 T2, compatible with ZSK. Plug-in, live-mountable additional terminals for voltage tapping from unmetered and metered current on phase L2 and N, locking of the BKE in non-bridged position possible by plug lock.

Maximum dimensions in installation position with sealable touch protection cover and eHZ meter:
Width = 180 mm, Height = 290 mm, Installation depth = 115 mm (8 PLE) or
Width = 195 mm, Height = 355 mm, Installation depth = 130 mm (15 PLE).

On the touch protection cover and the BKE, there are labeling fields for property number, metering point designation, and meter reading information during meter change.
EAN: 3250613805128.
