Hager Fuse switch disconnector

Ratings
Delivered between Thu, 4.6. and Wed, 10.6.
7 pieces in stock at supplier
free shipping

Product details

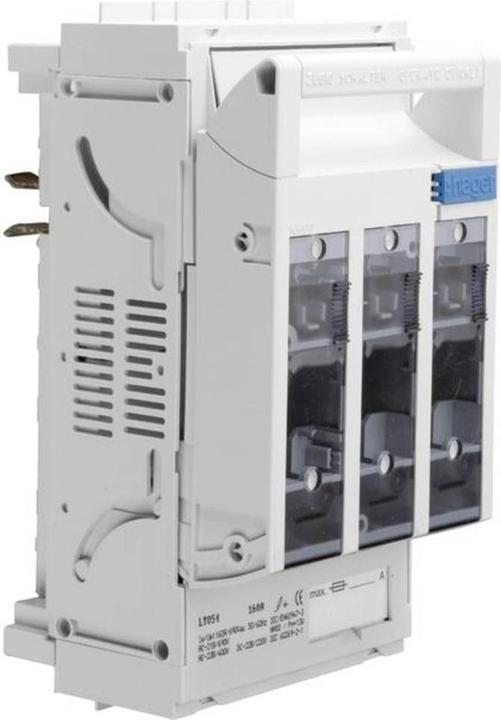

Hager Fuse Disconnect Switch LT054

Manufacturer: Hager
Designation: Fuse Disconnect Switch NH00, 3x160A
Type: LT054
Number of Poles: 3
Rated Operating Current Ie: 160 A
Max. Rated Operating Voltage Ue for AC: 690 V
Rated Insulation Voltage Ui: 1000 V
Size of Fuse Inserts: NH00
With Fuse Monitoring: no
Width of Housing: 106 mm
Depth of Housing: 104 mm
Height of Housing: 206 mm
Protection Class (IP): IP3X
Protection Class (NEMA): 1

Hager Fuse Disconnect Switch LT054: Additional Details
Fuse disconnect switch LT NH00/40mm, 160A, frame terminal for Cu up to 95 mm². NH00 fuse disconnect switch for busbar mounting with a distance of 40mm according to DIN EN 60947-3 and suitable for NH fuse inserts according to DIN 43620/1. Comprising a 3-pole switch base and sealable handle insert, touch protection on the handle, with a movable transparent window for voltage testing, all-pole switching, for mounting on CU busbar with a distance of 40mm, with outgoing connections at the top or bottom, without additional cover.

Key specifications

Width
106 mm
Height
206 mm

General information

Item number
17908951
Manufacturer
Hager
Category
Wiring closet technology
Manufacturer No.
LT054
Release date
13.12.2021
External links
Manufacturer's site (de)

Colour

Colour
Black
Exact colour description
RAL 9005

Material

Material group
Metal
Material
Copper

Distribution cabinet technology Features

Nominal current
160 A
number of poles
3
Operating class
aR
Fuse size
NH00

Smart home features

Control type
Manual

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Width
106 mm
Height
206 mm
Depth
104 mm
