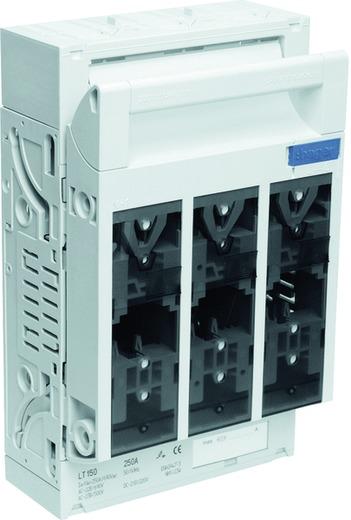

Hager Fuse switch disconnector

was CHF215.–
Ratings
Delivered between Tue, 16.6. and Tue, 23.6.
More than 10 items ordered
free shipping

Product details

Hager Fuse Load Break Switch LT150
Manufacturer: Hager
Designation: Fuse Load Break Switch NH1, 3x250A
Type: LT150
Number of Poles: 3
Rated Operating Current Ie: 250 A
Max. Rated Operating Voltage Ue for AC: 690 V
Rated Insulation Voltage Ui: 1000 V
Size of Fuse Inserts: NH1
With Fuse Monitoring: no
Width of Housing: 184 mm
Depth of Housing: 110 mm
Height of Housing: 304 mm
Protection Class (IP): IP3X
Protection Class (NEMA): 1

Hager Fuse Load Break Switch LT150: Additional Details
Fuse Load Break Switch LT NH1 250A for mounting plate, screw connection M10. NH1 Fuse Load Break Switch for mounting plate according to DIN EN 60947-3 (VDE 0660-107) and suitable for NH fuse inserts according to DIN 43620/1. Consists of a 3-pole switch base and sealable handle insert, touch protection on the handle, with a movable transparent window for voltage testing, all-pole switching, for mounting on a mounting plate, with outgoing connections at the top or bottom, without additional cover.

Key specifications

Width
184 mm
Height
304 mm

General information

Item number
17841929
Manufacturer
Hager
Category
Wiring closet technology
Manufacturer No.
LT150
Release date
13.12.2021
External links
Manufacturer's site (de)

Distribution cabinet technology Features

Nominal current
250 A
Nominal voltage
690 V
number of poles
3
breaking capacity
8.60 kA
Fuse size
NH1

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Width
184 mm
Height
304 mm
Depth
110 mm
