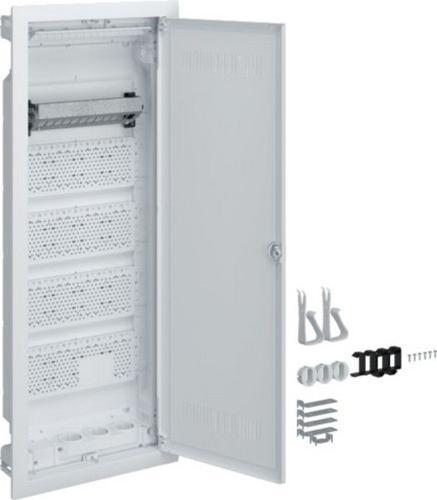

Hager Flush-mounted distributor

Multimedia, volta, UPV, 5-row, with slotted plastic door. Surface-mounted installation distribution board made of plastic, compliant with DIN VDE 61439-3, suitable for use in residential buildings according to DIN 18015 and for the installation of protective insulated VDI components. Protection class IP30, protection class II, insulated. Consisting of a plastic wall box with standard cable catch, break-out cable entry slider with snap fastening, integrated spirit level, and galvanized steel mounting brackets. Rotatable frame with ventilation door made of steel sheet with slotted plastic insert for better Wi-Fi signal, powder-coated and baked on, with 15 mm plaster compensation. Ventilation door, flush with the front, with internal manually operated hinges. Door lock with flush handle recess and self-retracting handle, door hinge on the right or left without the need to remove the frame. Upper connection area: Patch panel and DIN rail insulated and snapped in for accommodating various communication modules; for the required functional potential equalization according to DIN EN 50310 (VDE 0800-2-310), there are 2 screw fastenings available on the patch panel. Labeling option with included labeling strip for port labeling. Pre-mounted perforated mounting plates made of galvanized steel sheet with 3.2 mm perforation are installed. A universal holding bracket can be hung directly onto the perforated sheet for tool-free mounting of VDI components. In the lower connection area, a 3-fold protective contact socket (90° rotatable) is installed. The sockets can be connected directly via a terminal block. The sockets can be equipped with an included protective contact cover to comply with protection class II. Note: A type 3 surge protection module can be connected directly (not included).
