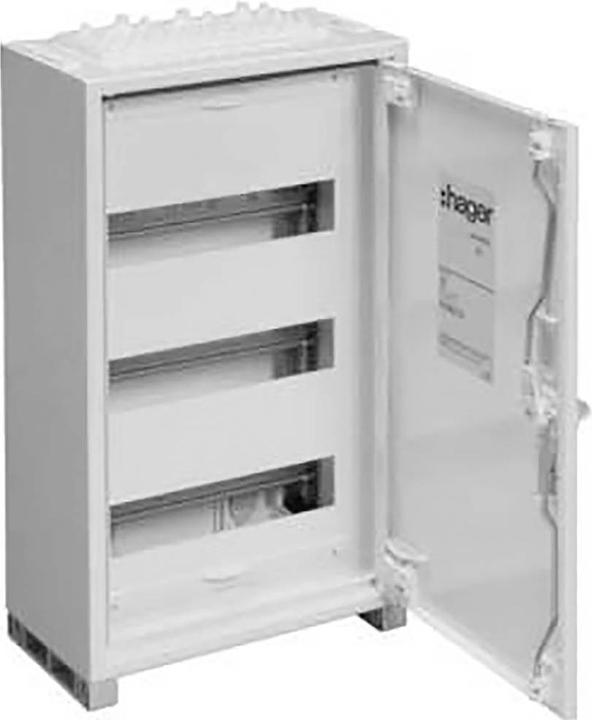

Hager Field distributor,universal

Ratings
Delivered between Fri, 14.8. and Fri, 4.9.
Only 1 piece in stock at supplier
free shipping

Show all

Product details

Hager Field Distributor, univers N FWB31S
Manufacturer: Hager
Description: Field distributor, univers N
Dimensions: 500 x 300 x 161 mm
Type: FWB31S
Mounting type: Surface-mounted, flush-mounted, partially recessed
Number of rows: 3
Width in division units: 12
Cover type: Cover
Design cover: With cutout
Transparent cover/door: No
Housing material: Steel
Height: 500 mm
Width: 300 mm
Depth: 161 mm
Inner depth: 161 mm
DIN rail: Yes
With mounting plate: No
Mounting option: Yes
Color: White
RAL number: 9010
Protection class (IP): IP44
With lock: No
Locking type: Other

Additional details:
Field distributor, universal, IP44, SKII, 36PLE, H: 500 x W: 300 x D: 161 mm, QuickConnect. Field distributor according to DIN EN 61 439-1/-3, dimension standard according to DIN 43 870. For the installation of devices up to 125 A, air and creepage distances according to DIN EN 60664-1. Consists of a cabinet with a door made of powder-coated and baked steel sheet. From a cabinet width of 800 mm (3-part) double-wing design. Right doors maximum 2-part width. Complete cabinet equipped with installation kit with profiled mounting rails, 7.5 mm high DIN rails with 125 mm spacing between centers and matching contact hazard covers, including mounted PE/N QuickConnect connections on the support rail. Cable entries at the top/bottom through removable flexible plastic flange plates, additionally replaceable. Door with internally adjustable hinges and an opening angle of 110°. Doors can be hinged on the right or left, tool-free replaceable door hinges. Door lock standard with three-point locking system and lockable folding handle. Replaceable, lockable locking systems and doors, see accessories.
EAN: 3250612735631.

Key specifications

Distribution cabinet technology Type
Field distributor
Protection type (IP code)
IP44
Length
161 mm
Width
300 mm
Height
500 mm

General information

Item number
17840052
Manufacturer
Hager
Category
Wiring closet technology
Manufacturer No.
FWB31S
Release date
13.12.2021
Sales rank in Category Wiring closet technology
69 of 12019

Colour

Colour
White
Exact colour description
White

Material

Material group
Metal
Material
Steel

Distribution cabinet technology Features

Distribution cabinet technology Type
Field distributor
Area of use
Outside
Nominal current
125 A
Protection type (IP code)
IP44
Divisions
12x

Origin

Country of origin
China, Germany

Voluntary climate contribution

CO₂ emissions
43.6 kg
Climate contribution
CHF 1.04

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
161 mm
Width
300 mm
Height
500 mm
Depth
161 mm

Package dimensions

Length
57 cm
Width
32 cm
Height
19 cm
Weight
7.66 kg
