Hager Cable junction box universal U84LE 324x307x149 IP54 SKII empty f.Erweiterun

Hager Cable Connection Box U84LE

Manufacturer: Hager
Designation: Cable connection box
Dimensions: 305 x 305 x 150 mm
Type: U84LE
Mounting beside cabinet: yes
Mounting above cabinet: no
Mounting below cabinet: yes
Number of poles: 4
Connection type: Terminal
Protection class (IP): IP54
Height: 305 mm
Width: 305 mm
Depth: 150 mm

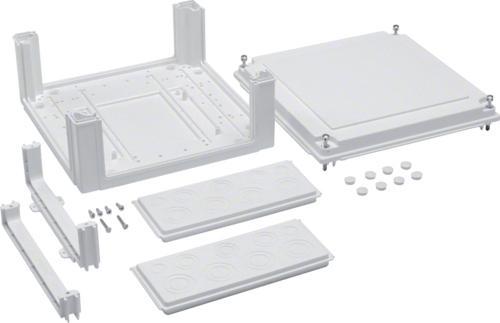

The Hager Cable Connection Box U84LE is a universal cable connection box with dimensions of 324 x 307 x 149 mm and a protection class of IP54. It serves as a supply housing for meters and distribution cabinets with a depth of 160 mm or 205 mm. The box consists of a plastic housing with a lid and is either equipped with a busbar support or left empty for optional fitting with terminals or a mounting plate.

Cable entry is facilitated by removable flange plates on each side, making it easier to insert the cable from the front. There are mounting options on the sides or bottom, and the lid is sealable. The box allows for a feed of up to 95 mm² on terminals or up to 150 mm² on a busbar system with a short-circuit strength of 25 kA or 55 kA, depending on the configuration.

The protection class is IP54, the protection class II is double insulated, and the rated voltage is 230/400 V at 50 Hz.
