Hager Cable junction box 305x305x50mm

Ratings
Delivered between Thu, 29.1. and Wed, 11.2.
8 pieces in stock at supplier
free shipping

Product details

Hager Cable Connection Box U84S4

Manufacturer: Hager
Designation: Cable connection box
Dimensions: 305 x 305 x 150 mm
Type: U84S4
Mounting beside cabinet: yes
Mounting above cabinet: no
Mounting below cabinet: no
Number of poles: 5
Max. cross-section of supply cable: 120 mm²
Connection type: Busbar
Protection class (IP): IP54
Height: 305 mm
Width: 305 mm
Depth: 150 mm

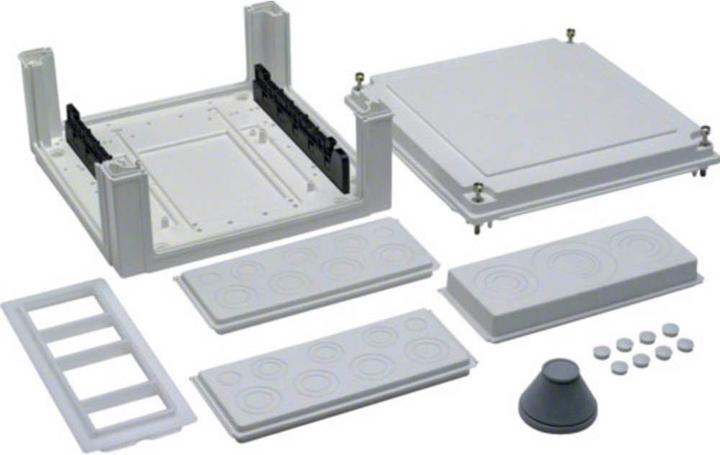

The Hager Cable Connection Box U84S4 is a universal cable connection box with dimensions of 324 x 307 x 149 mm and a protection class of IP54. It is suitable as a supply housing for meters and distribution cabinets with a depth of 160 mm or 205 mm.

The housing is made of plastic and is either equipped with a busbar carrier or left empty for optional fitting with terminals or a mounting plate. Cable entry is facilitated by removable flange plates on each side, allowing the cable to be inserted from the front.

There are mounting options on the side or bottom, and the lid is sealable. The connection is possible up to 95 mm² on terminals or up to 150 mm² on a busbar system with a short-circuit strength of up to 25 kA, or 60 mm² with a maximum of 55 kA.

The protection class is IP54, the protection class II is double insulated, and the rated voltage is 230/400 V at 50 Hz.

Key specifications

Protection type (IP code)
IP54
Width
305 mm
Length
150 mm
Height
305 mm

General information

Item number
12899930
Manufacturer
Hager
Category
Wiring closet technology
Manufacturer no.
U84S4
Release date
12.3.2020
External links
Manufacturer's site (de)

Colour

Colour
White
Exact colour description
White

Material

Material group
Plastic
Material
Plastic

Distribution cabinet technology Features

Protection type (IP code)
IP54
number of poles
5

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
150 mm
Width
305 mm
Height
305 mm
Depth
149 mm

30-day right of return if unopened
24 Months Warranty (Bring-in)
